BSI-CL PRO 100KG Industrial AGV Robot

  • Product Model: BSI-CL PRO
  • Applicable Scenarios: Factory workshops, scientific research institutions, logistics warehouses, special industries
  • Dimensions: 704mm(L)×470mm(W)×1820mm(H)
  • Maximum Load Capacity: 100KG
  • Battery Life: 8 hours under full load, 15 hours with no load
  • Net Weight: Approx. 90KG
  • Charging Time: Approx. 6 hours
  • Travel Speed: 0.1~1m/s
  • Navigation Accuracy: ±1cm
  • Product Material: Sheet metal
  • Motor Drive: 5.5-inch wheel motor
  • Charging Mode: Automatic return charging, direct charging
  • Adapter Spec: Input AC110-240V 50-60HZ, Output 43.2V-5A
  • Charging Pile: Overcurrent protection, intelligent power-off; Rated output voltage 43.2VDC, rated output current 5A
  • Telescopic Bracket Range: 1.62m-1.82m
  • Laser Radar: 50m single-line laser radar
  • Product Details

·100KG Heavy Load & Solid Sheet Metal Body

BSI-CL PRO supports maximum 100kg cargo transportation to meet heavy industrial handling demands. The whole sheet metal body is wear-resistant and impact-resistant for long-time stable operation. Equipped with 5.5-inch wheel motor, it moves smoothly in narrow aisles. The 1.62-1.82m adjustable telescopic bracket adapts different cargo heights.

·Dual-Sensor Intelligent Obstacle Avoidance

Combined front 3D camera and 50m single-line laser radar, the AGV reaches ±1cm navigation accuracy. It detects dynamic and static obstacles in real time and reroutes automatically, reducing manual intervention for complex workshop environments.

·Multi-Robot Collaboration & Cross-Floor Transport

The self-developed scheduling system allows multiple AGVs to run orderly without conflict. Reserved elevator docking interface enables autonomous up and down floors, breaking single-floor logistics limits and boosting overall handling efficiency.

·Long Endurance & Safe Global Voltage Charging

8 hours continuous working under full load, 15 hours empty-load runtime. Support auto return charging and direct charging, only 6 hours for full charge. Matching charging pile has overcurrent protection and auto power off. The adapter covers AC110-240V global voltage, safe for worldwide use.

· Multi-Scenario Industrial Application

Perfect for factory raw material transfer, lab sample delivery, warehouse goods sorting and special industry material transportation. It’s an automatic solution to replace manual work and cut logistics labor costs.


Hot Tags :
Best Source International ltd.,

Tel:+86 18664362527

Contact Person:Kevin

Send message to us
Phone
Phone
WeChat
Teams
Whatsapp
captcha
If have any questions or suggestions, you are welcome to leave us message ,we will contact with you asap.

RELATED PRODUCTS

Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .

BSI Smart Warehouse 300KG Delivery AGV

BSI Speedboat Delivery Robot is an adaptable autonomous warehouse AMR with an advanced rack-lifting system for full-shelf goods-to-person transport. It supports customizable configurations to fit distribution, fast picking and inventory management, and coordinates smoothly with other automated robots via powerful fleet management. Its open SDK allows customized workflow development, cutting labor costs and boosting overall warehouse logistics efficiency for diverse heavy-load handling and storage automation scenarios.





BSI Speedboat Delivery Robot 300KG Load Capacity

BSI Speedboat Delivery Robot is an adaptable autonomous warehouse AMR with an advanced rack-lifting system for full-shelf goods-to-person transport. It supports customizable configurations to fit distribution, fast picking and inventory management, and coordinates smoothly with other automated robots via powerful fleet management. Its open SDK allows customized workflow development, cutting labor costs and boosting overall warehouse logistics efficiency for diverse heavy-load handling and storage automation scenarios.





BSI Speedboat 300KG Autonomous Delivery Robot AMR

BSI Speedboat Delivery Robot is an adaptable autonomous warehouse AMR with an advanced rack-lifting system for full-shelf goods-to-person transport. It supports customizable configurations to fit distribution, fast picking and inventory management, and coordinates smoothly with other automated robots via powerful fleet management. Its open SDK allows customized workflow development, cutting labor costs and boosting overall warehouse logistics efficiency for diverse heavy-load handling and storage automation scenarios.





BSI Speedboat Warehouse AMR AGV

BSI Speedboat Delivery Robot is an adaptable autonomous warehouse AMR with an advanced rack-lifting system for full-shelf goods-to-person transport. It supports customizable configurations to fit distribution, fast picking and inventory management, and coordinates smoothly with other automated robots via powerful fleet management. Its open SDK allows customized workflow development, cutting labor costs and boosting overall warehouse logistics efficiency for diverse heavy-load handling and storage automation scenarios.





BSI Speedboat Delivery Robot

BSI Speedboat Delivery Robot is an adaptable autonomous warehouse AMR with an advanced rack-lifting system for full-shelf goods-to-person transport. It supports customizable configurations to fit distribution, fast picking and inventory management, and coordinates smoothly with other automated robots via powerful fleet management. Its open SDK allows customized workflow development, cutting labor costs and boosting overall warehouse logistics efficiency for diverse heavy-load handling and storage automation scenarios.





BSI Delivery Robot Max Payload 300KG

Warehouse Autonomous Delivery Robot

BSI-BD is an autonomous transport robot for warehouses, factories and distribution centers, cutting manual haulage to raise efficiency and lower costs.

It features open SDK & API to link with WMS/ERP systems. The 100kg-load robot with smart navigation handles stock replenishment, order picking and inventory shifting.

Installation needs no site reconstruction. Its LiDAR scans surroundings to generate real-time routes, supporting plug-and-play deployment without interrupting daily work.

BSI Delivery Robot Max Payload 600KG

Warehouse Autonomous Delivery Robot

BSI-BD is an autonomous transport robot for warehouses, factories and distribution centers, cutting manual haulage to raise efficiency and lower costs.

It features open SDK & API to link with WMS/ERP systems. The 100kg-load robot with smart navigation handles stock replenishment, order picking and inventory shifting.

Installation needs no site reconstruction. Its LiDAR scans surroundings to generate real-time routes, supporting plug-and-play deployment without interrupting daily work.

BSI Delivery Robot Max Payload 100KG

Warehouse Autonomous Delivery Robot

BSI-BD is an autonomous transport robot for warehouses, factories and distribution centers, cutting manual haulage to raise efficiency and lower costs.

It features open SDK & API to link with WMS/ERP systems. The 100kg-load robot with smart navigation handles stock replenishment, order picking and inventory shifting.

Installation needs no site reconstruction. Its LiDAR scans surroundings to generate real-time routes, supporting plug-and-play deployment without interrupting daily work.

Delivery Robot Max Payload 100KG/300KG/600KG

Warehouse Autonomous Delivery Robot

BSI-BD is an autonomous transport robot for warehouses, factories and distribution centers, cutting manual haulage to raise efficiency and lower costs.

It features open SDK & API to link with WMS/ERP systems. The 100kg-load robot with smart navigation handles stock replenishment, order picking and inventory shifting.

Installation needs no site reconstruction. Its LiDAR scans surroundings to generate real-time routes, supporting plug-and-play deployment without interrupting daily work.

BSI Logistics Robot Max Payload 100KG/300KG/600KG

Warehouse Autonomous Delivery Robot

BSI-BD is an autonomous transport robot for warehouses, factories and distribution centers, cutting manual haulage to raise efficiency and lower costs.

It features open SDK & API to link with WMS/ERP systems. The 100kg-load robot with smart navigation handles stock replenishment, order picking and inventory shifting.

Installation needs no site reconstruction. Its LiDAR scans surroundings to generate real-time routes, supporting plug-and-play deployment without interrupting daily work.

BSI Logistics Robot Max Payload-100KG/300KG/600KG

Warehouse Autonomous Delivery Robot

BSI-BD is an autonomous transport robot for warehouses, factories and distribution centers, cutting manual haulage to raise efficiency and lower costs.

It features open SDK & API to link with WMS/ERP systems. The 100kg-load robot with smart navigation handles stock replenishment, order picking and inventory shifting.

Installation needs no site reconstruction. Its LiDAR scans surroundings to generate real-time routes, supporting plug-and-play deployment without interrupting daily work.

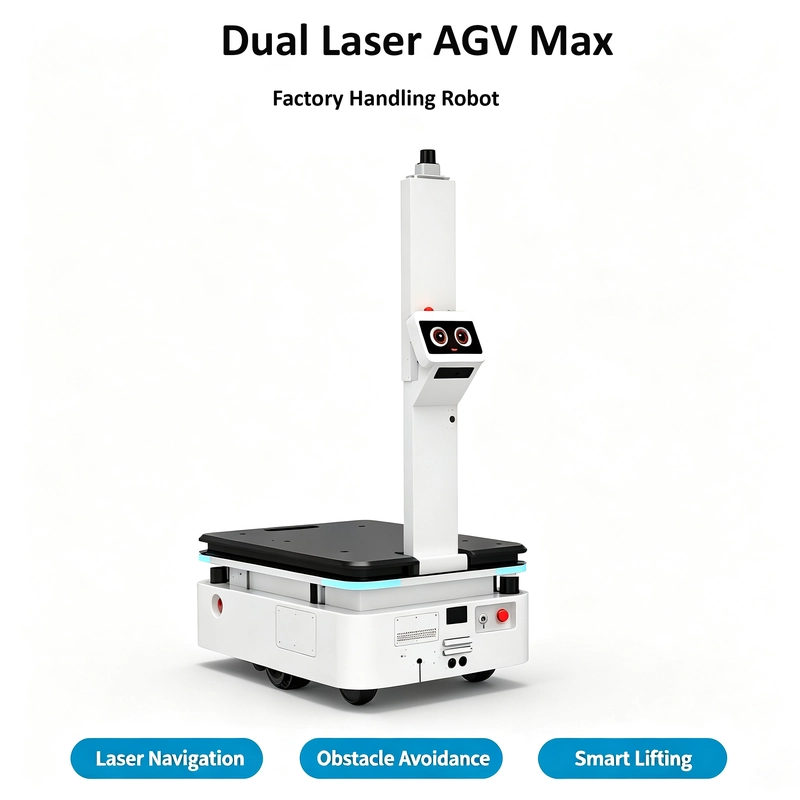

BSI Warehouse AMR Robot

Warehouse Autonomous Delivery Robot

BSI-BD is an autonomous transport robot for warehouses, factories and distribution centers, cutting manual haulage to raise efficiency and lower costs.

It features open SDK & API to link with WMS/ERP systems. The 100kg-load robot with smart navigation handles stock replenishment, order picking and inventory shifting.

Installation needs no site reconstruction. Its LiDAR scans surroundings to generate real-time routes, supporting plug-and-play deployment without interrupting daily work.

BSI Delivery Robot

Warehouse Autonomous Delivery Robot

BSI-BD is an autonomous transport robot for warehouses, factories and distribution centers, cutting manual haulage to raise efficiency and lower costs.

It features open SDK & API to link with WMS/ERP systems. The 100kg-load robot with smart navigation handles stock replenishment, order picking and inventory shifting.

Installation needs no site reconstruction. Its LiDAR scans surroundings to generate real-time routes, supporting plug-and-play deployment without interrupting daily work.

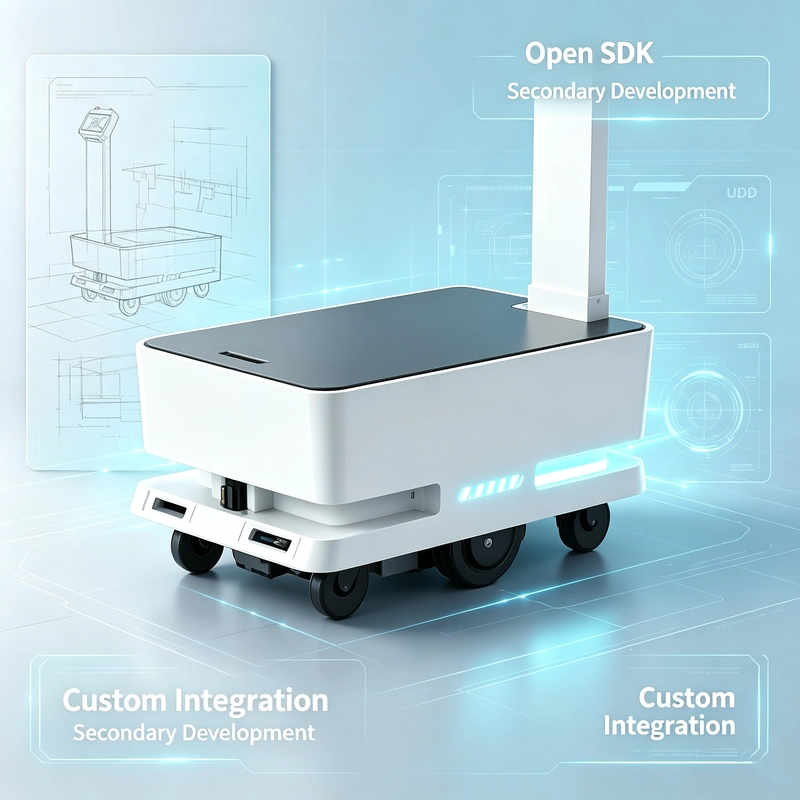

BSI-BD AMR Robot

Warehouse Autonomous Delivery Robot

BSI-BD is an autonomous transport robot for warehouses, factories and distribution centers, cutting manual haulage to raise efficiency and lower costs.

It features open SDK & API to link with WMS/ERP systems. The 100kg-load robot with smart navigation handles stock replenishment, order picking and inventory shifting.

Installation needs no site reconstruction. Its LiDAR scans surroundings to generate real-time routes, supporting plug-and-play deployment without interrupting daily work.

BSI-BD Logistics Robot

Warehouse Autonomous Delivery Robot

BSI-BD is an autonomous transport robot for warehouses, factories and distribution centers, cutting manual haulage to raise efficiency and lower costs.

It features open SDK & API to link with WMS/ERP systems. The 100kg-load robot with smart navigation handles stock replenishment, order picking and inventory shifting.

Installation needs no site reconstruction. Its LiDAR scans surroundings to generate real-time routes, supporting plug-and-play deployment without interrupting daily work.

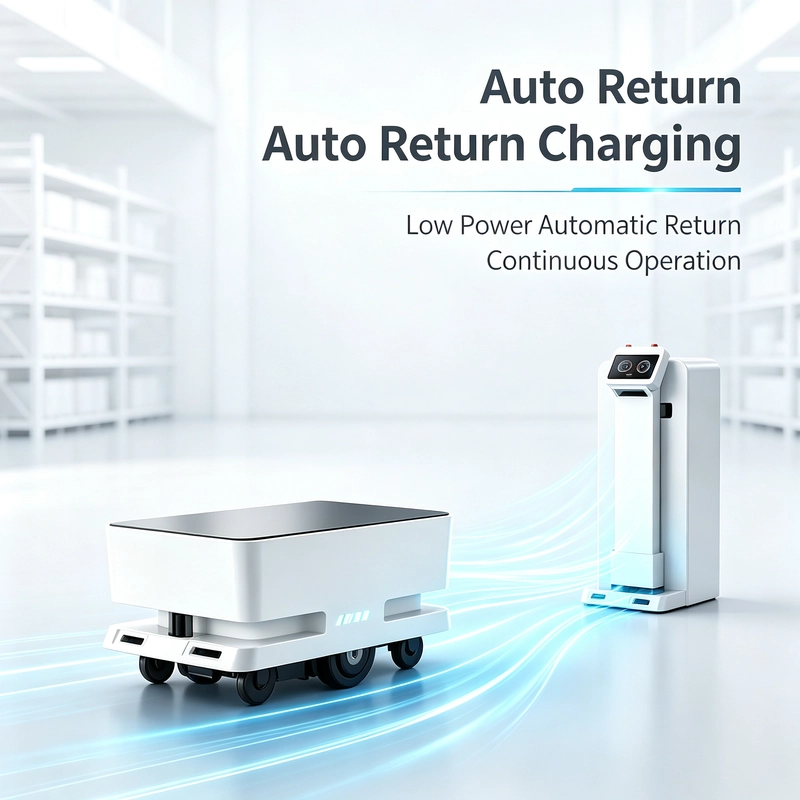

BSI-BD Delivery Robot
