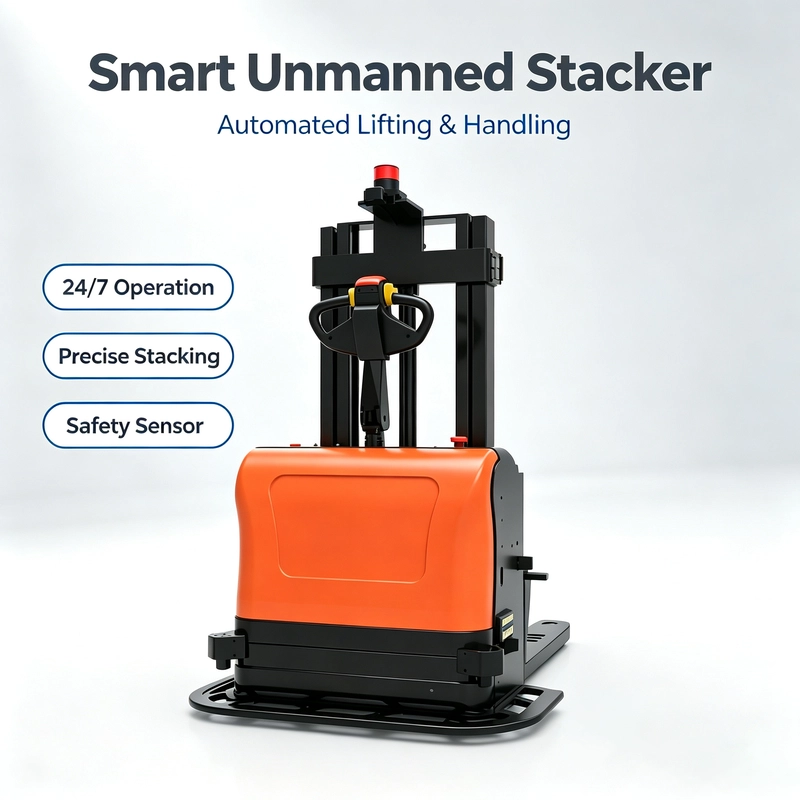

BSI-CC 1.0 1.5T Autonomous Pallet Truck Unmanned Forklift
• 1500KG Heavy Load Handling Capacity
The solid sheet metal body and stable lifting structure support up to 1.5 tons pallet cargo transportation. Reliable load-bearing performance meets high-frequency inbound, outbound and stacking tasks of manufacturing workshops and large logistics warehouses.
• Marker-Free Laser SLAM Navigation System
Configured with 1×50m long-range LiDAR and 4×25m auxiliary LiDARs, the forklift adopts laser SLAM mapping technology without reflective plates or magnetic strips. Site deployment is fast and flexible, easy to adjust routes when warehouse layouts change, greatly reducing project transformation expenses. Navigation accuracy is controlled within ±10cm for precise pallet docking.
• Intelligent Pallet Identification & Accurate Forking
Built-in visual recognition module automatically detects pallet positions and openings, adjusting driving posture in real time to complete accurate fork insertion. It avoids empty forks or misalignment, improving loading and unloading efficiency and reducing pallet damage rate.

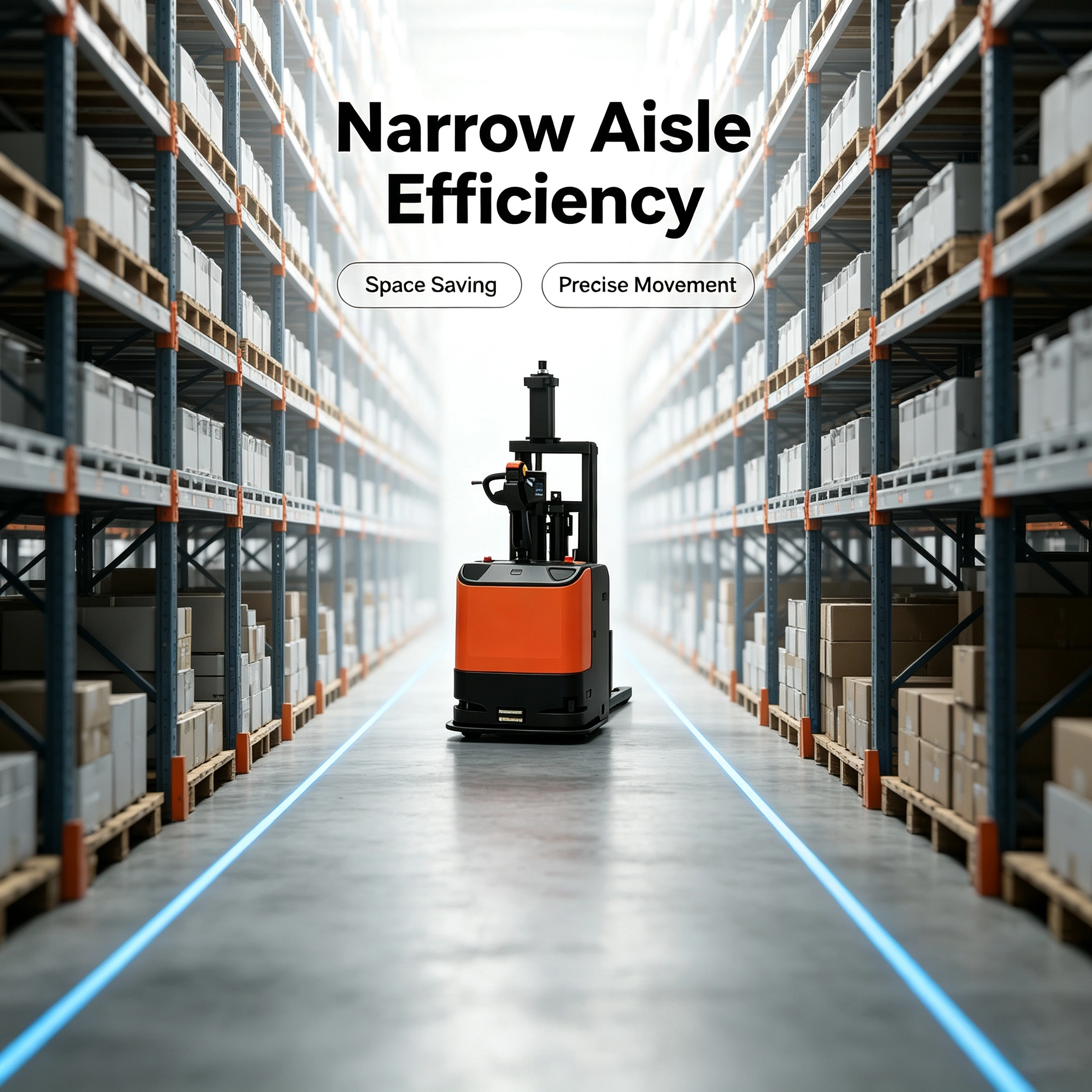

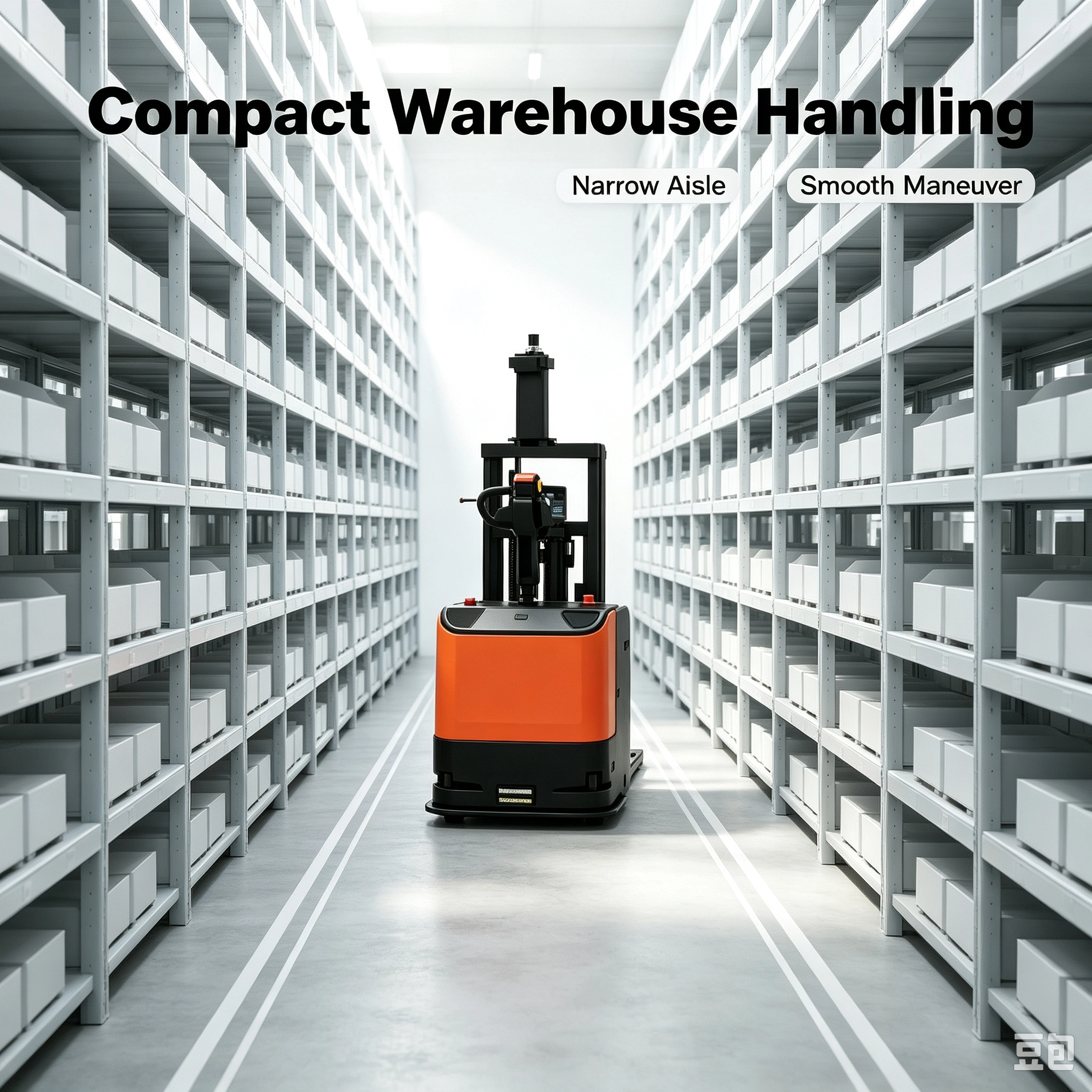

• Slender Narrow Body & Ultra-Small Turning Radius
The 650mm narrow width body delivers outstanding flexibility. It smoothly travels and turns in narrow storage aisles, maximizing warehouse space utilization and fitting compact factory and distribution center layouts.
• 360° Three-Dimensional Full Safety Protection
Integrated multi-sensor safety system including 3D obstacle avoidance cameras and contact safety bumpers achieves omnidirectional risk detection. It slows down or stops automatically when detecting pedestrians, goods or obstacles, effectively preventing collision accidents during automatic operation.
• Dual Charging Modes & Stable Long Endurance
Powered by 48V/36AH lithium iron phosphate battery. It works 6 hours under full load and 8 hours without cargo, with only 4 hours required for full charge. Users can choose automatic charging for unattended operation or manual quick battery swap for non-stop 24-hour production. The 10.1-inch touch screen displays real-time operating data, battery status and task information for easy on-site monitoring.
• Wide Cross-Industry Application Coverage

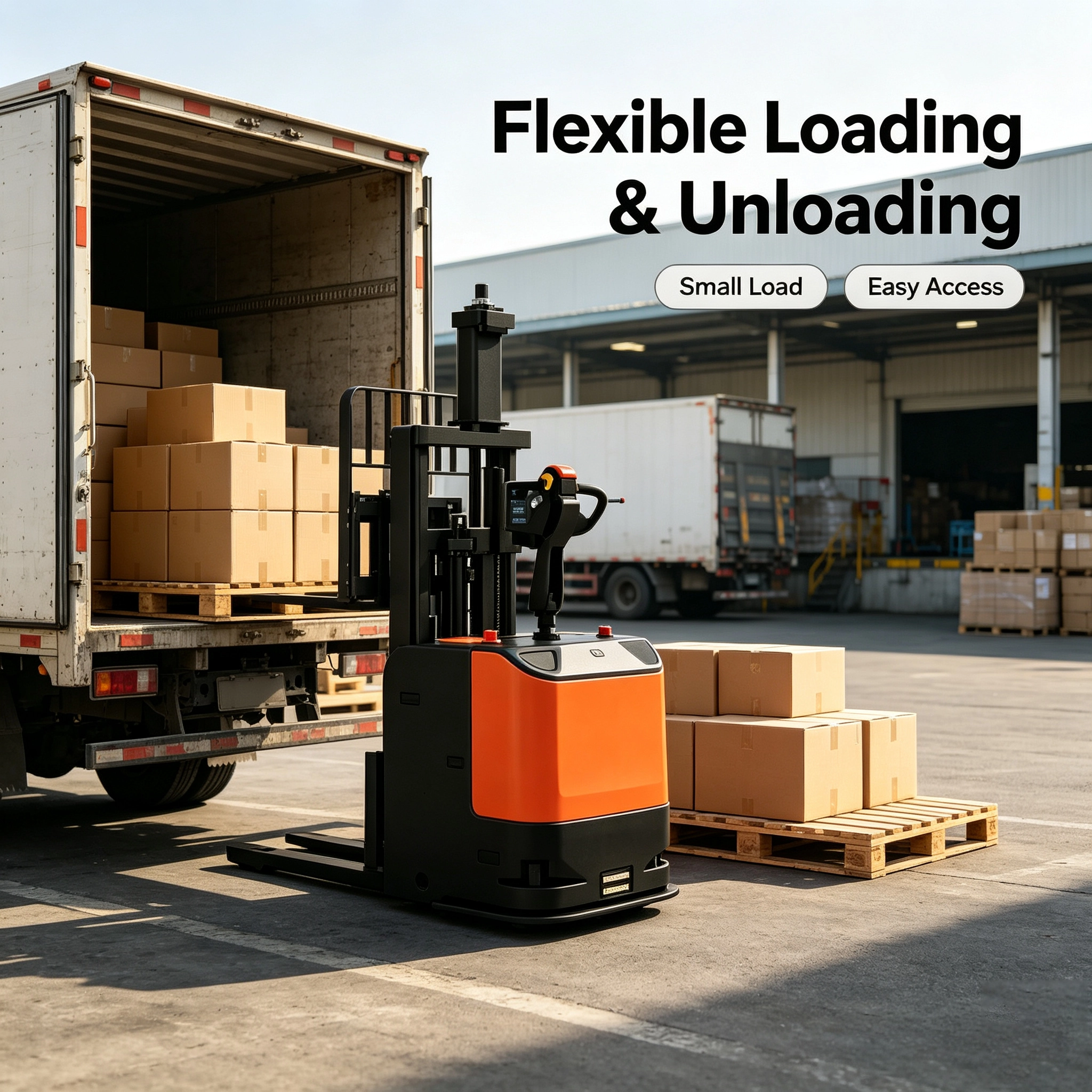

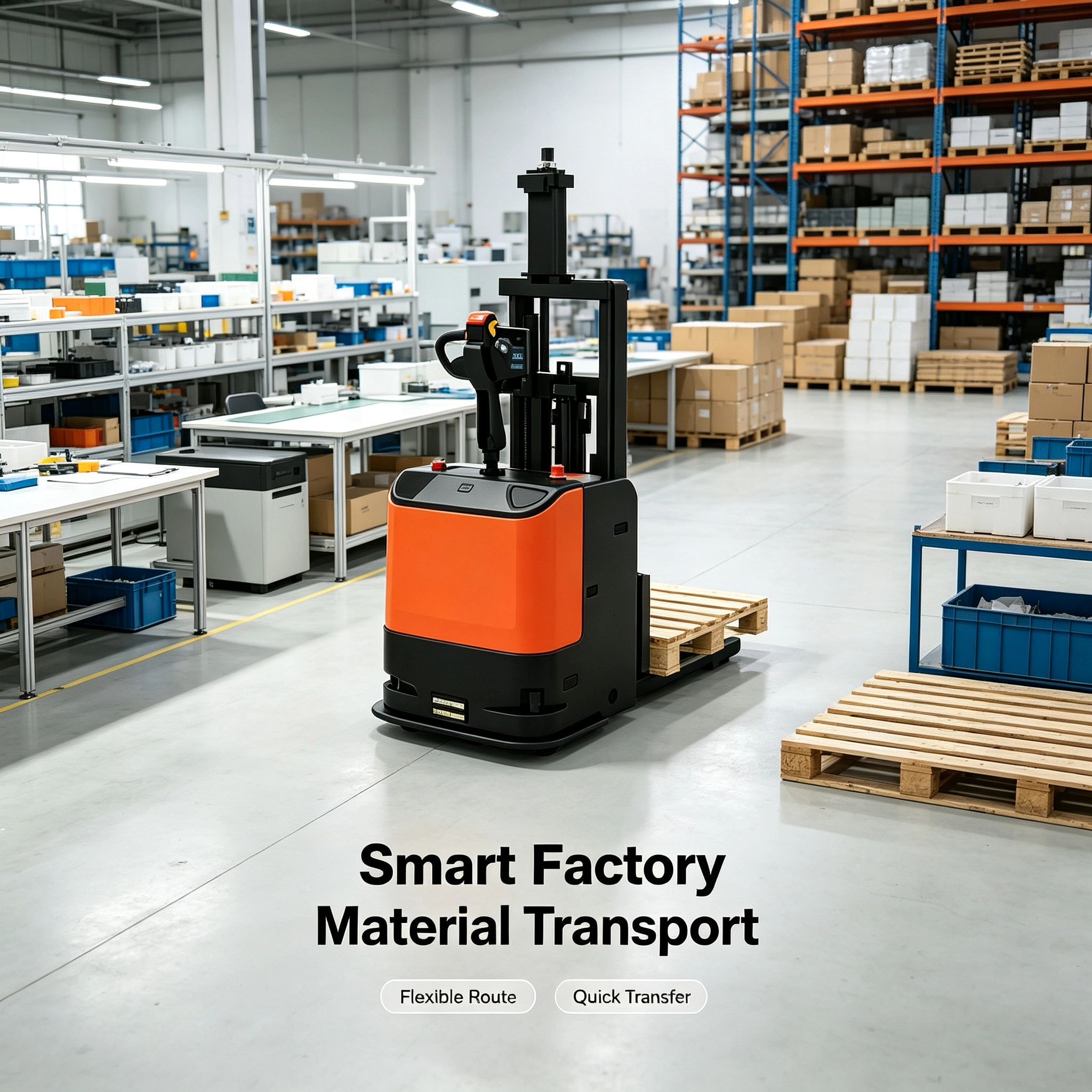

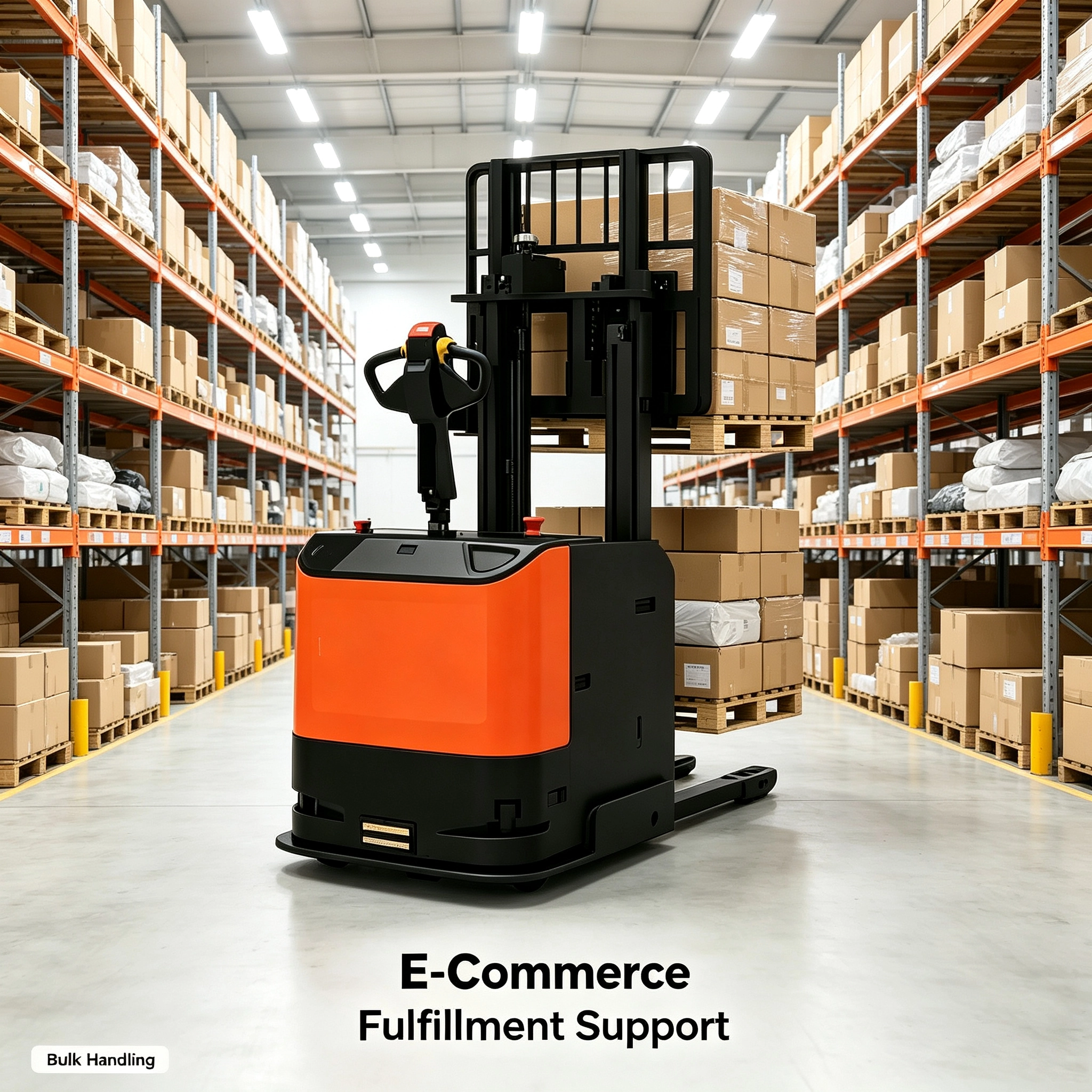

Suitable for raw material transportation in production workshops, pallet sorting in storage warehouses, cargo transfer at ports, stations and airports, as well as goods distribution in circulation & delivery centers, realizing fully automated unmanned material handling.
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Mini 2.0 Autonomous Forklift Unmanned Stacker Compact AGV for Narrow Aisle Operations
BSI-CC 1.5T Electric Forklifts is a dual-mode unmanned pallet handling electric forklift supporting both manual walking control and fully automatic unmanned operation. It delivers a 1500KG heavy load capacity and a maximum 2585mm lifting height to meet high-level stacking demands. With an ultra-small 1.5m turning radius, the forklift operates flexibly inside narrow warehouse aisles. Equipped with 3D camera & LiDAR multi-sensor fusion system, it achieves all-round autonomous obstacle avoidance. It supports automatic recharging and fast battery replacement to realize non-stop 24-hour operation. The single-line long-distance laser radar supports mapping coverage up to 40,000 square meters, making it a reliable automated handling solution for large-scale factories, warehouses, ports and logistics distribution hubs.
BSI-CC 2.0 1.5T Forklift is an upgraded autonomous unmanned forklift designed for automated pallet material handling across multiple industries. It supports a maximum 1500KG load and adopts multi-sensor fusion technology combining 3D cameras and laser radars for intelligent autonomous obstacle avoidance. Equipped with quick-disassembly battery structure, it supports fast battery replacement and automatic recharging to achieve 24-hour non-stop operation. The optimized 550mm fork arms perfectly fit small Euro pallets, while hydraulic side shift enables compatibility with standard pallets over 1.2m. Compact narrow-body design, marker-free laser navigation and all-round safety sensing make it the ideal unmanned handling solution for factories, warehouses, ports and logistics distribution hubs.
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053

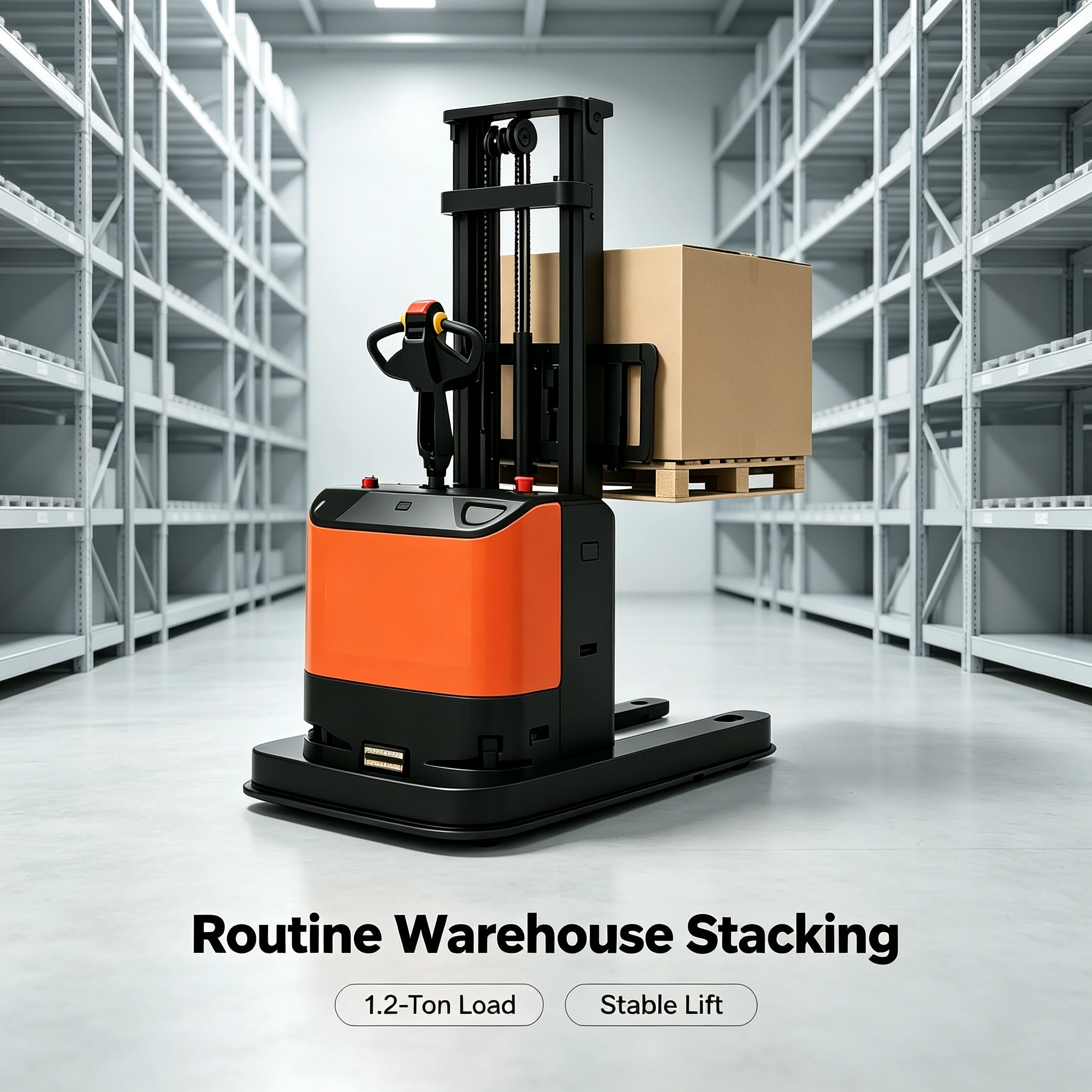

Load Capacity: 1200 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
Load Capacity: 1200 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053

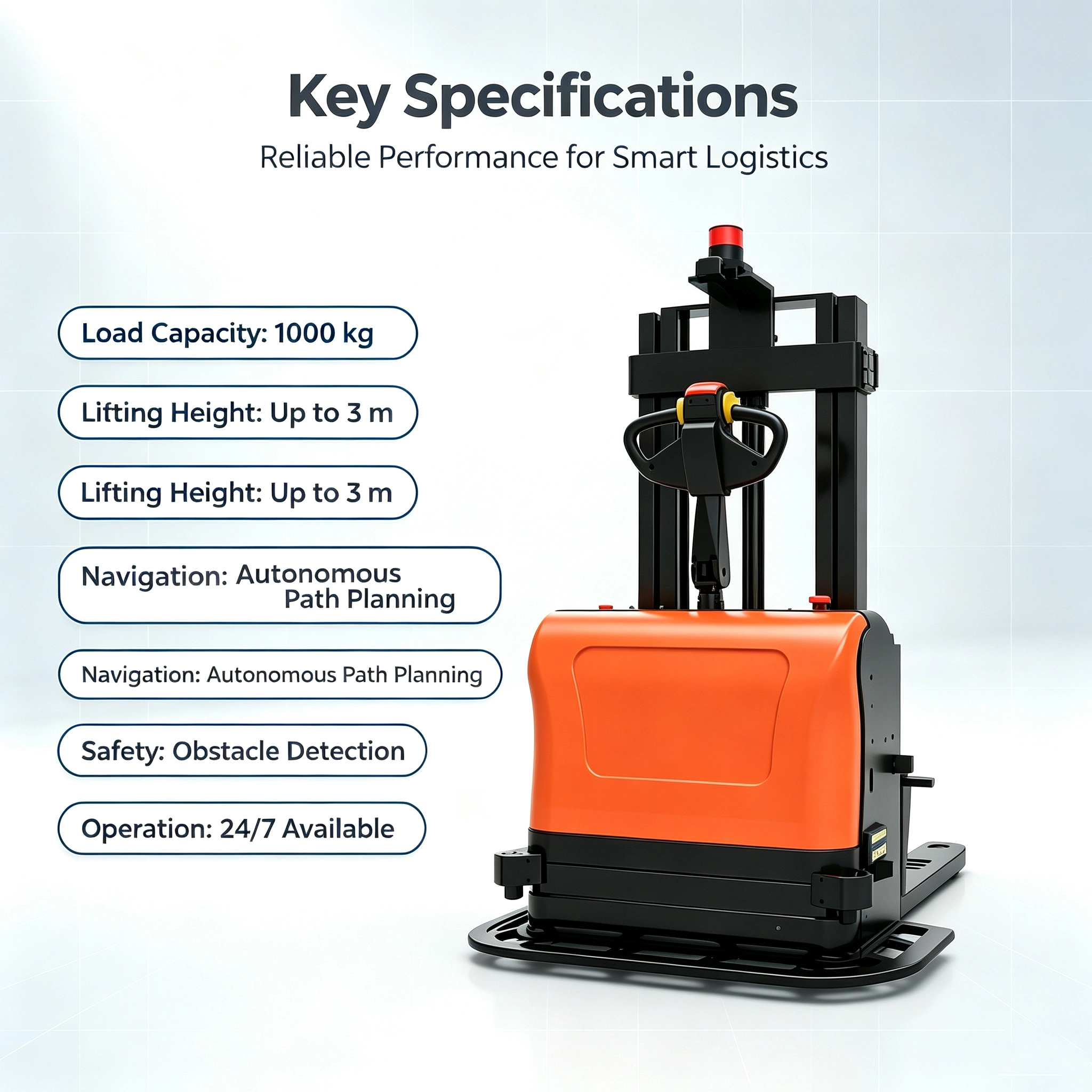

Load Capacity: 1000 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Wheel Parameters Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Wheel Track Front Wheel Track: 866mm Rear Wheel Track: 525mm
Aisle Width Requirement
Speed Performance Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Motor & Brake Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Power System Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Control & Display System Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch
Hardware Buttons & Safety 1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Noise Standard Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
