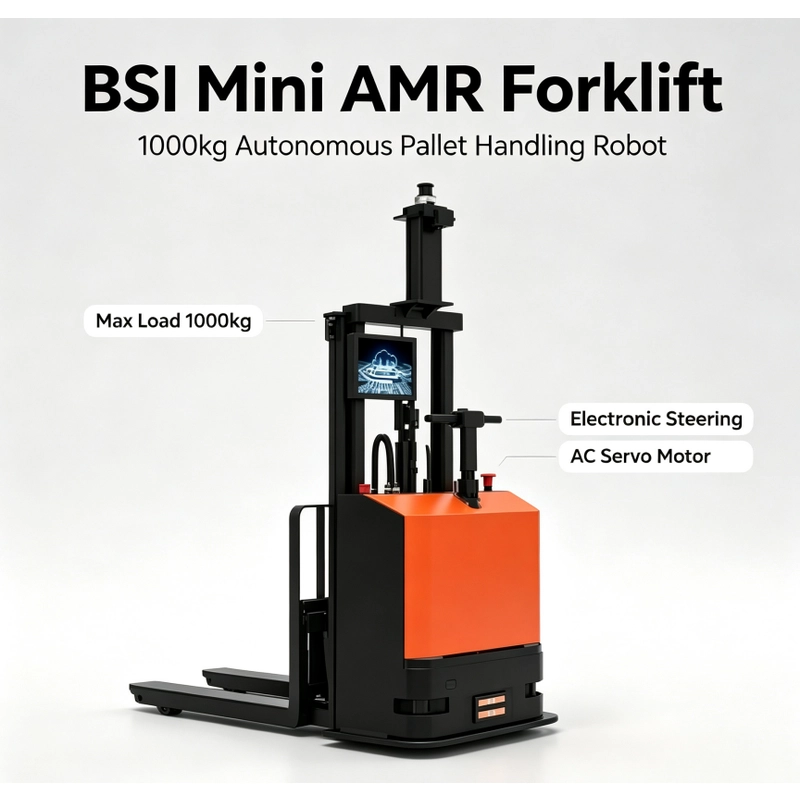

BSI Mini 1000KG Autonomous Forklift Narrow Aisle Warehouse
BSI Mini autonomous forklift fits compact high-density warehouses. Its narrow 1100mm aisle design boosts storage capacity by 30% vs standard forklifts. It handles round-the-clock pallet storage, transfer and cross-docking to stabilize peak-season throughput.

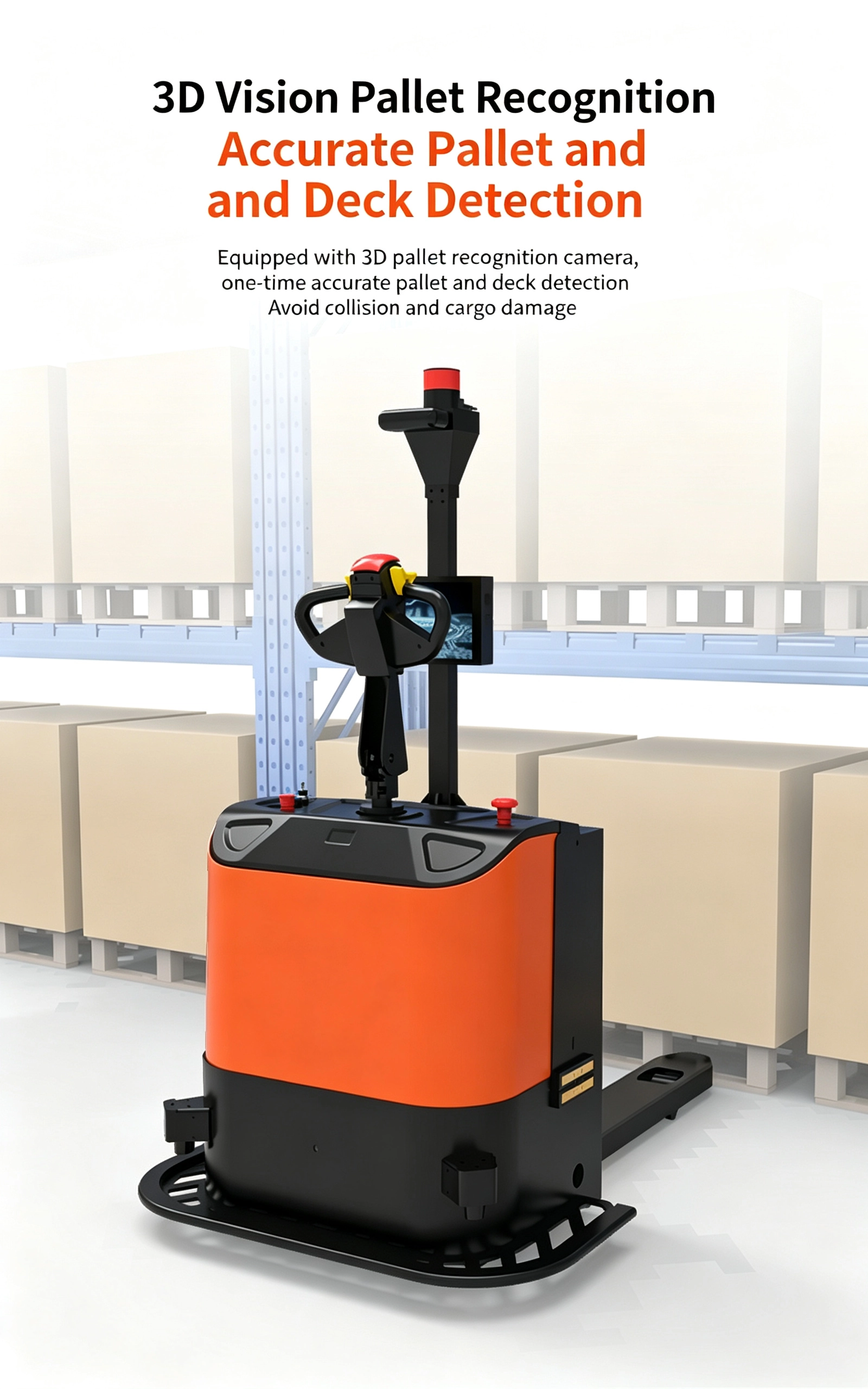

Compact BSI Mini matches narrow retail warehouse backrooms with mixed SKUs. It connects seamlessly with conveyors and AS/RS for timely store restocking. 3D vision prevents cargo damage and supports fast same-day order fulfillment.
BSI Mini AGV transports WIP goods between production lines and warehouses. No magnetic tape/RFID layout modification needed for flexible factory rearrangement. Advanced obstacle avoidance enables safe human-machine collaboration to deliver raw materials and finished products efficiently.
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .

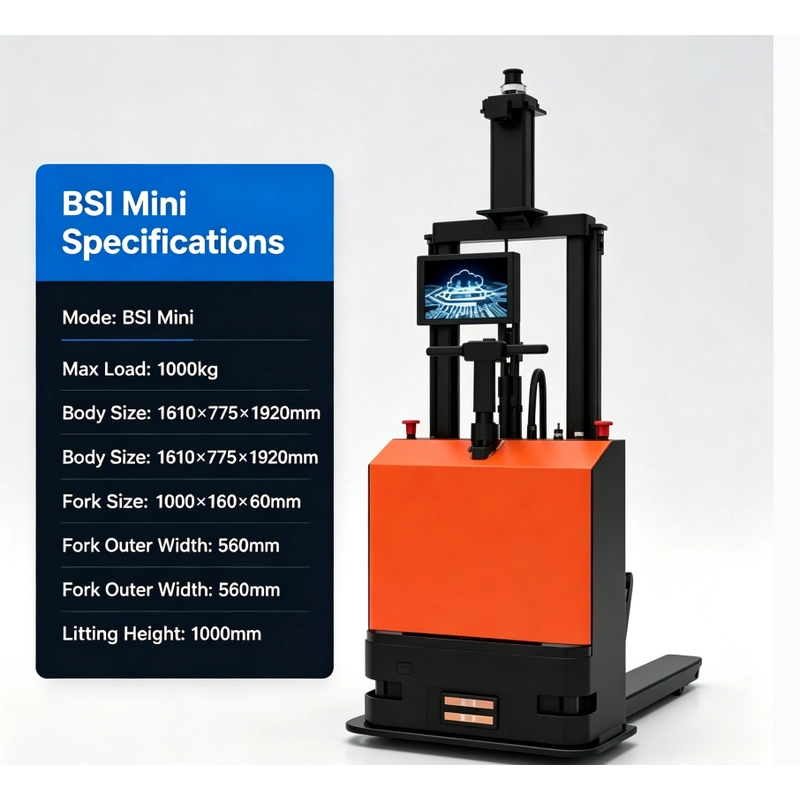

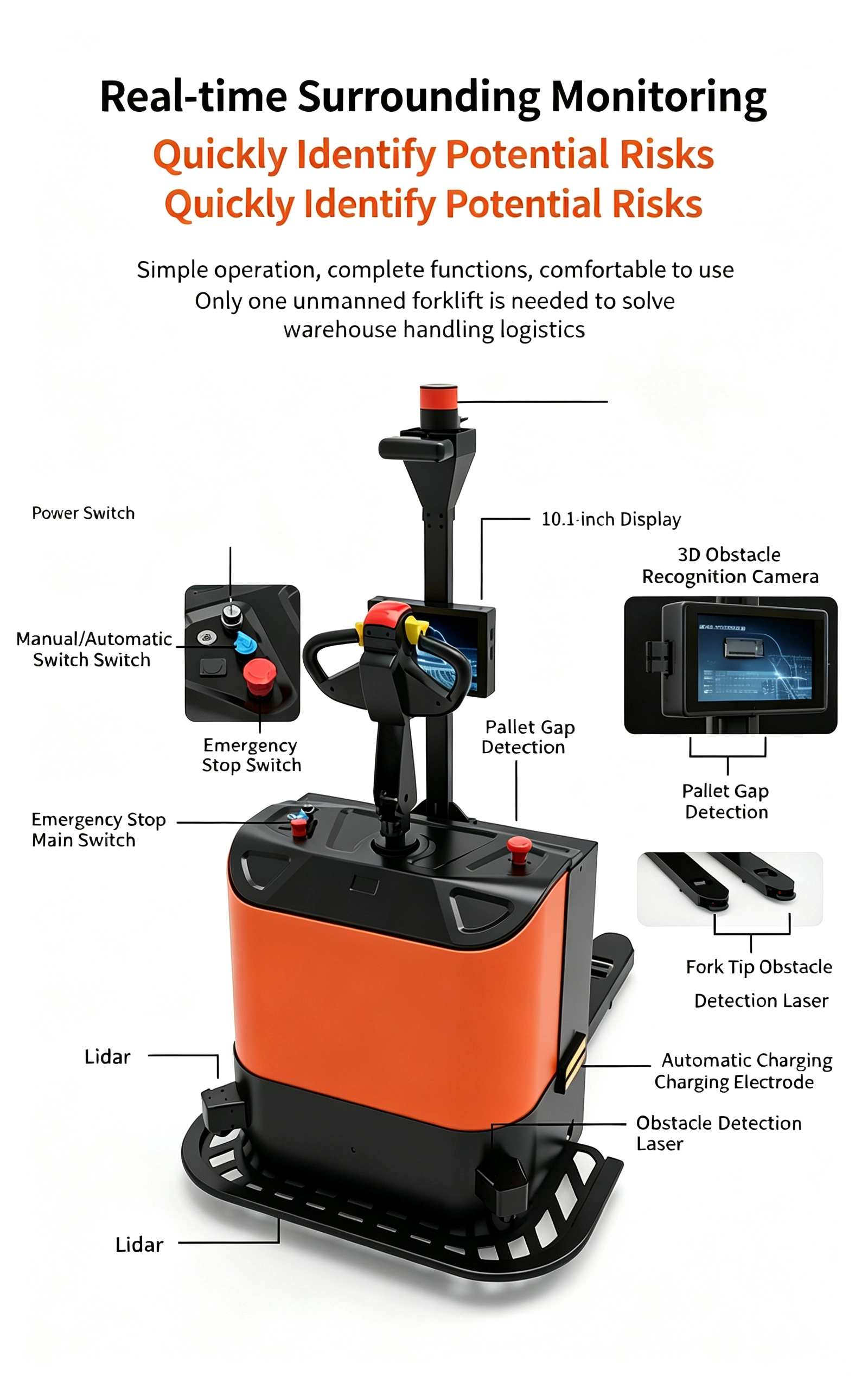

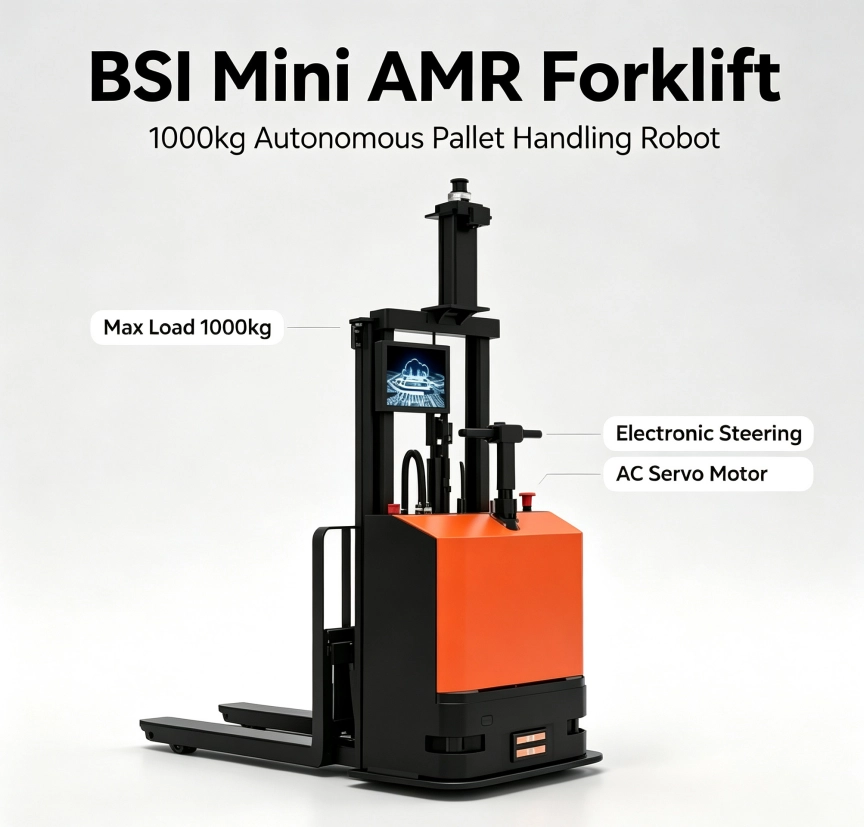

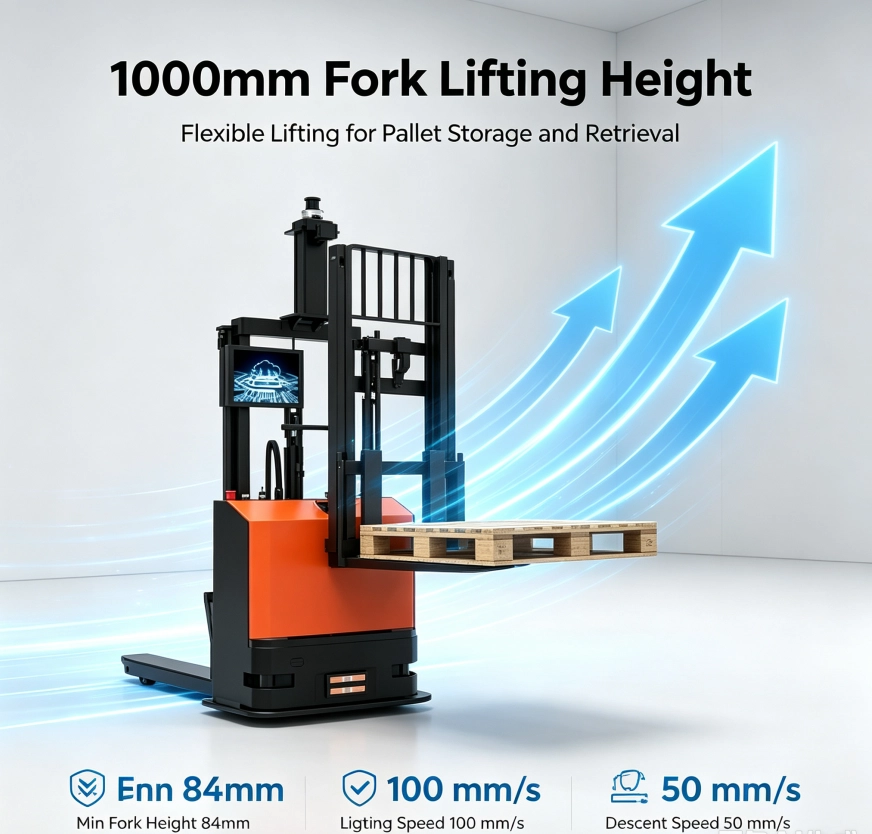

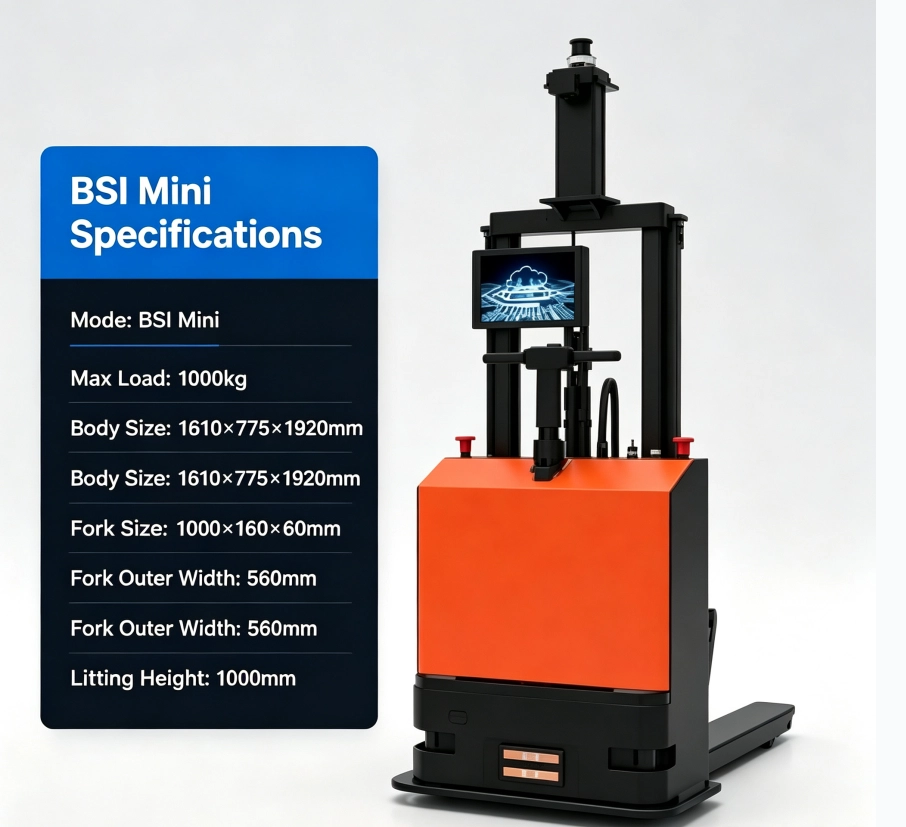

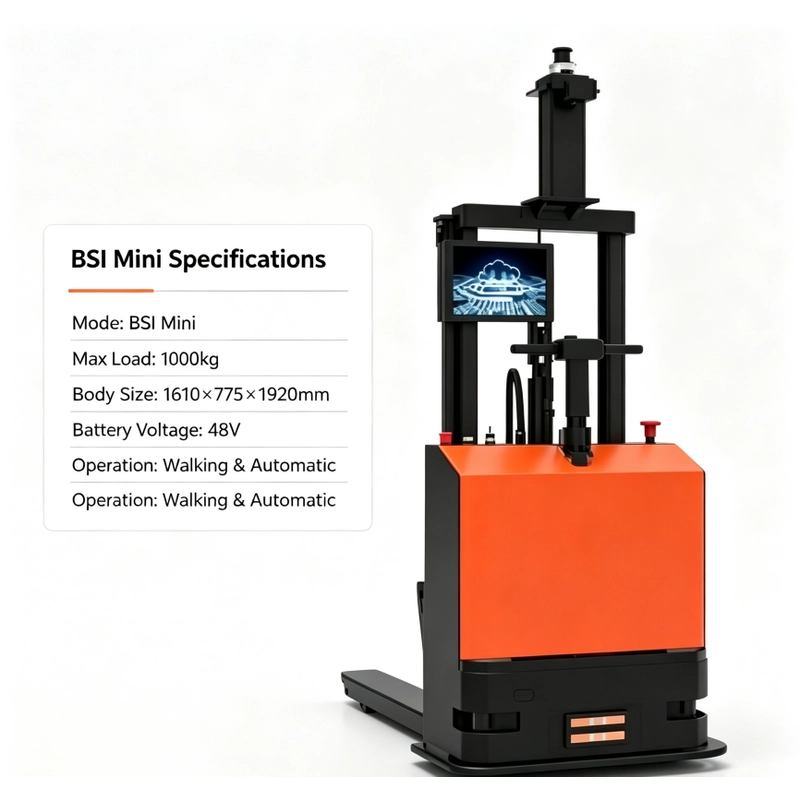

The BSI Mini is a compact autonomous forklift truck (AGV) manufactured by BSI Robotics for narrow aisle warehouse operations. Featuring laser SLAM navigation technology and a 1000kg payload capacity, this robotic forklift operates in aisles as narrow as 1.1 meters without requiring magnetic tape or QR code infrastructure modifications.
Warehouse: Narrow-aisle AGV forklift for high-density storage & all-shift pallet transport
Retail Distribution: Compact robotic forklift for fast, damage-free order replenishment
Manufacturing: Infrastructure-free WIP transport robot for flexible production lines
The BSI Mini is a compact autonomous forklift truck (AGV) manufactured by BSI Robotics for narrow aisle warehouse operations. Featuring laser SLAM navigation technology and a 1000kg payload capacity, this robotic forklift operates in aisles as narrow as 1.1 meters without requiring magnetic tape or QR code infrastructure modifications.
Warehouse: Narrow-aisle AGV forklift for high-density storage & all-shift pallet transport
Retail Distribution: Compact robotic forklift for fast, damage-free order replenishment
Manufacturing: Infrastructure-free WIP transport robot for flexible production lines
The BSI Mini is a compact autonomous forklift truck (AGV) manufactured by BSI Robotics for narrow aisle warehouse operations. Featuring laser SLAM navigation technology and a 1000kg payload capacity, this robotic forklift operates in aisles as narrow as 1.1 meters without requiring magnetic tape or QR code infrastructure modifications.
Warehouse: Narrow-aisle AGV forklift for high-density storage & all-shift pallet transport
Retail Distribution: Compact robotic forklift for fast, damage-free order replenishment
Manufacturing: Infrastructure-free WIP transport robot for flexible production lines
The BSI Mini is a compact autonomous forklift truck (AGV) manufactured by BSI Robotics for narrow aisle warehouse operations. Featuring laser SLAM navigation technology and a 1000kg payload capacity, this robotic forklift operates in aisles as narrow as 1.1 meters without requiring magnetic tape or QR code infrastructure modifications.
Warehouse: Narrow-aisle AGV forklift for high-density storage & all-shift pallet transport
Retail Distribution: Compact robotic forklift for fast, damage-free order replenishment
Manufacturing: Infrastructure-free WIP transport robot for flexible production lines

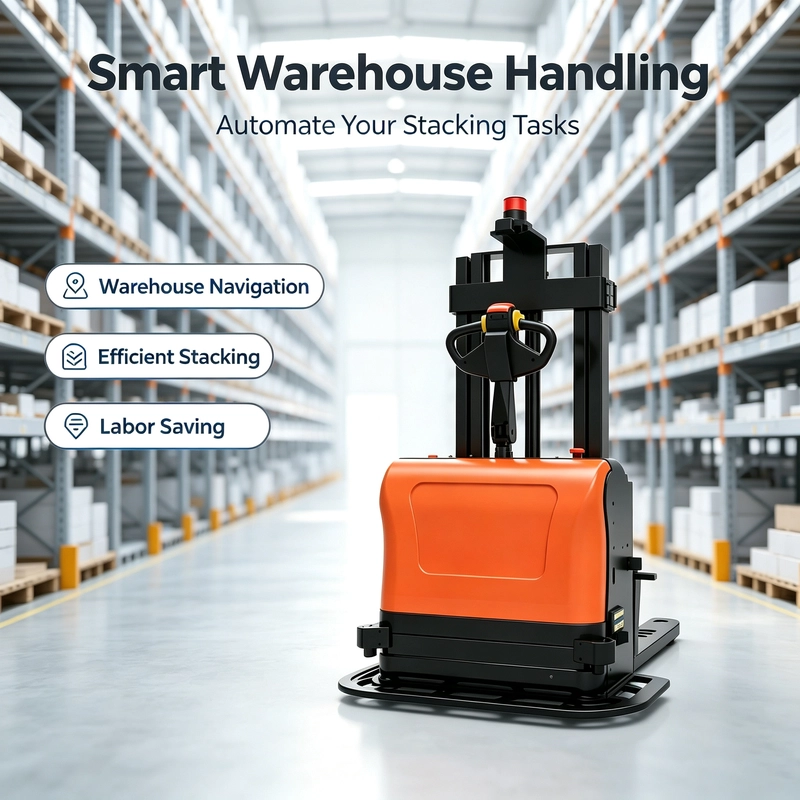

BSI-CC 1.5T Electric Forklifts is a dual-mode unmanned pallet handling electric forklift supporting both manual walking control and fully automatic unmanned operation. It delivers a 1500KG heavy load capacity and a maximum 2585mm lifting height to meet high-level stacking demands. With an ultra-small 1.5m turning radius, the forklift operates flexibly inside narrow warehouse aisles. Equipped with 3D camera & LiDAR multi-sensor fusion system, it achieves all-round autonomous obstacle avoidance. It supports automatic recharging and fast battery replacement to realize non-stop 24-hour operation. The single-line long-distance laser radar supports mapping coverage up to 40,000 square meters, making it a reliable automated handling solution for large-scale factories, warehouses, ports and logistics distribution hubs.

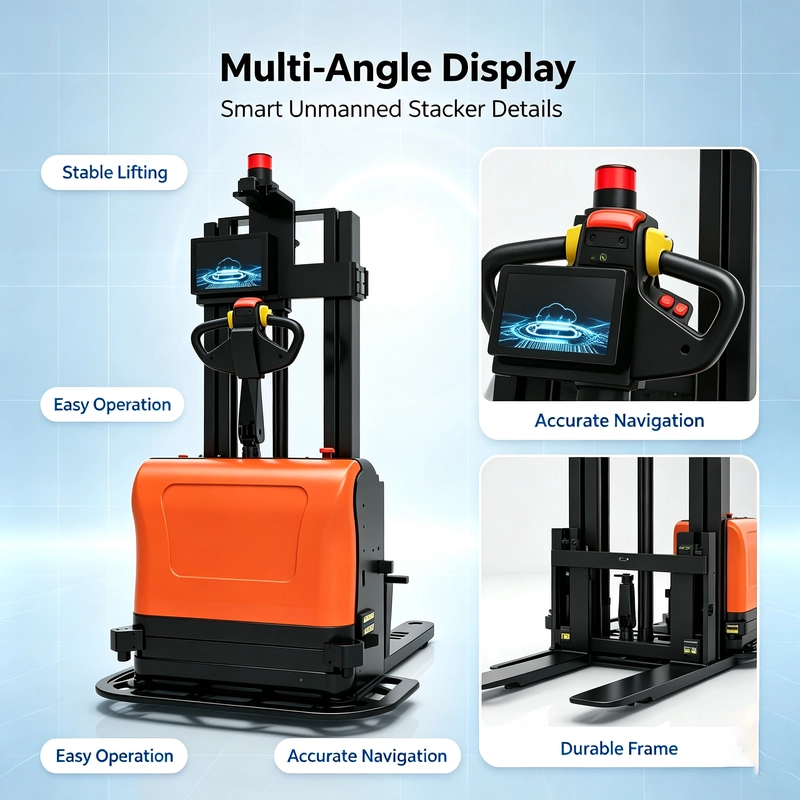

BSI-CC 2.0 1.5T Forklift is an upgraded autonomous unmanned forklift designed for automated pallet material handling across multiple industries. It supports a maximum 1500KG load and adopts multi-sensor fusion technology combining 3D cameras and laser radars for intelligent autonomous obstacle avoidance. Equipped with quick-disassembly battery structure, it supports fast battery replacement and automatic recharging to achieve 24-hour non-stop operation. The optimized 550mm fork arms perfectly fit small Euro pallets, while hydraulic side shift enables compatibility with standard pallets over 1.2m. Compact narrow-body design, marker-free laser navigation and all-round safety sensing make it the ideal unmanned handling solution for factories, warehouses, ports and logistics distribution hubs.

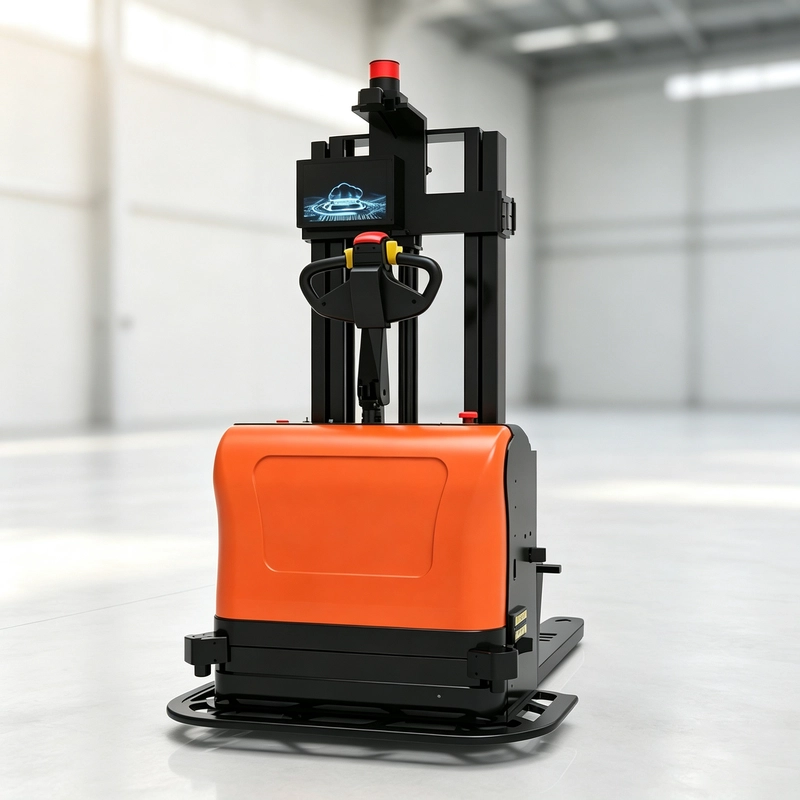

BSI-CC 1.0 1.5T is a lightweight autonomous unmanned pallet forklift built for indoor and semi-outdoor cargo handling. It supports 1500kg heavy cargo transportation with laser SLAM navigation that eliminates the need for reflective markers to cut deployment costs. Compact narrow-body design with small turning radius adapts to narrow warehouse aisles. Equipped with pallet recognition function, multi LiDAR sensors, 3D obstacle avoidance and safety bumpers, it realizes full 360° three-dimensional safety protection. Dual charging modes and long-lasting lithium iron phosphate battery support all-day material transportation for factories, logistics hubs, ports and distribution centers.
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake

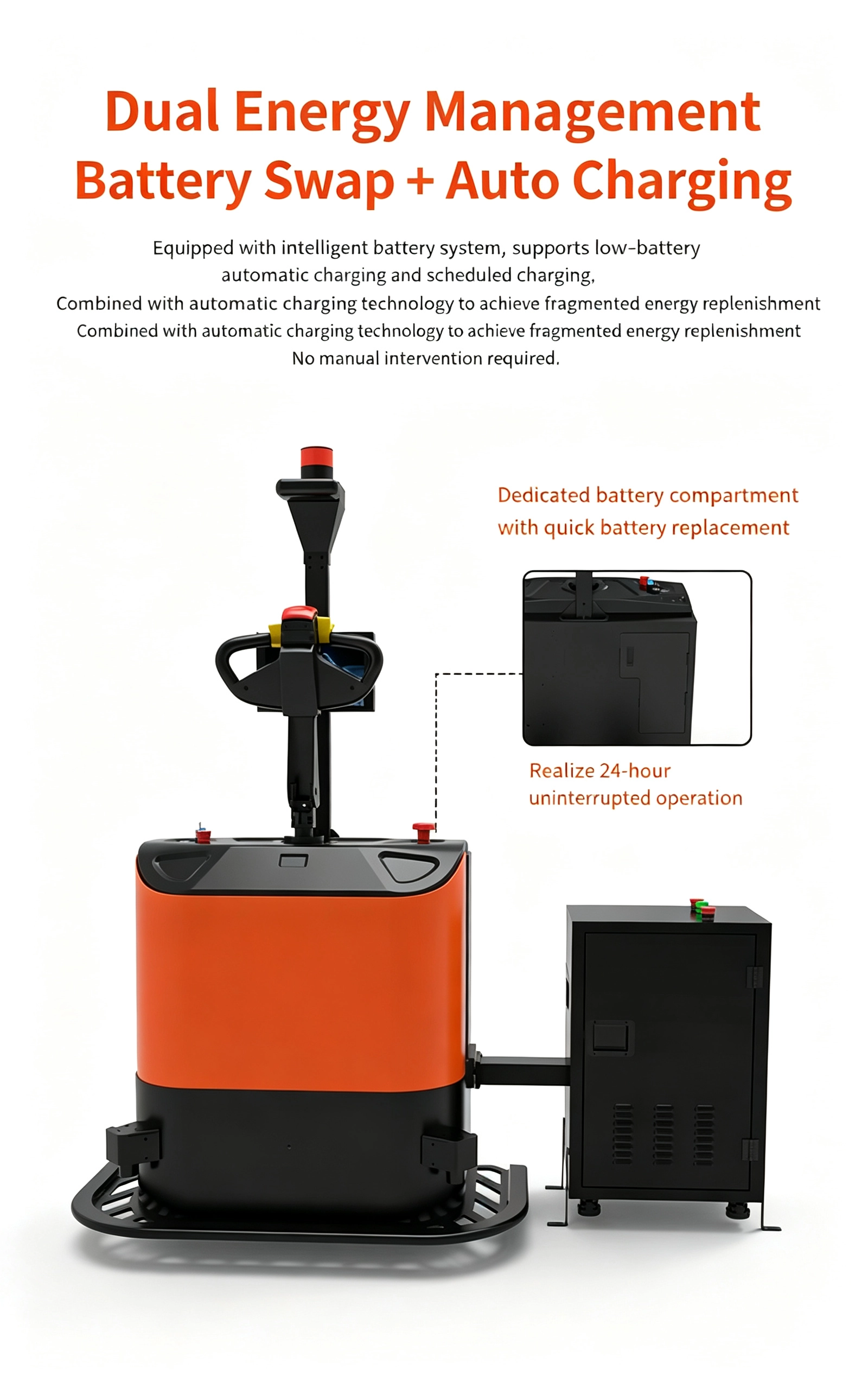

Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
Load Capacity: 1200 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
Load Capacity: 1200 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
Load Capacity: 1000 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Wheel Parameters Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Wheel Track Front Wheel Track: 866mm Rear Wheel Track: 525mm
Aisle Width Requirement
Speed Performance Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Motor & Brake Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Power System Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Control & Display System Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch
Hardware Buttons & Safety 1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Noise Standard Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
