Mini 2.0 Autonomous Forklift Unmanned Stacker Compact AGV for Narrow Aisle Operations

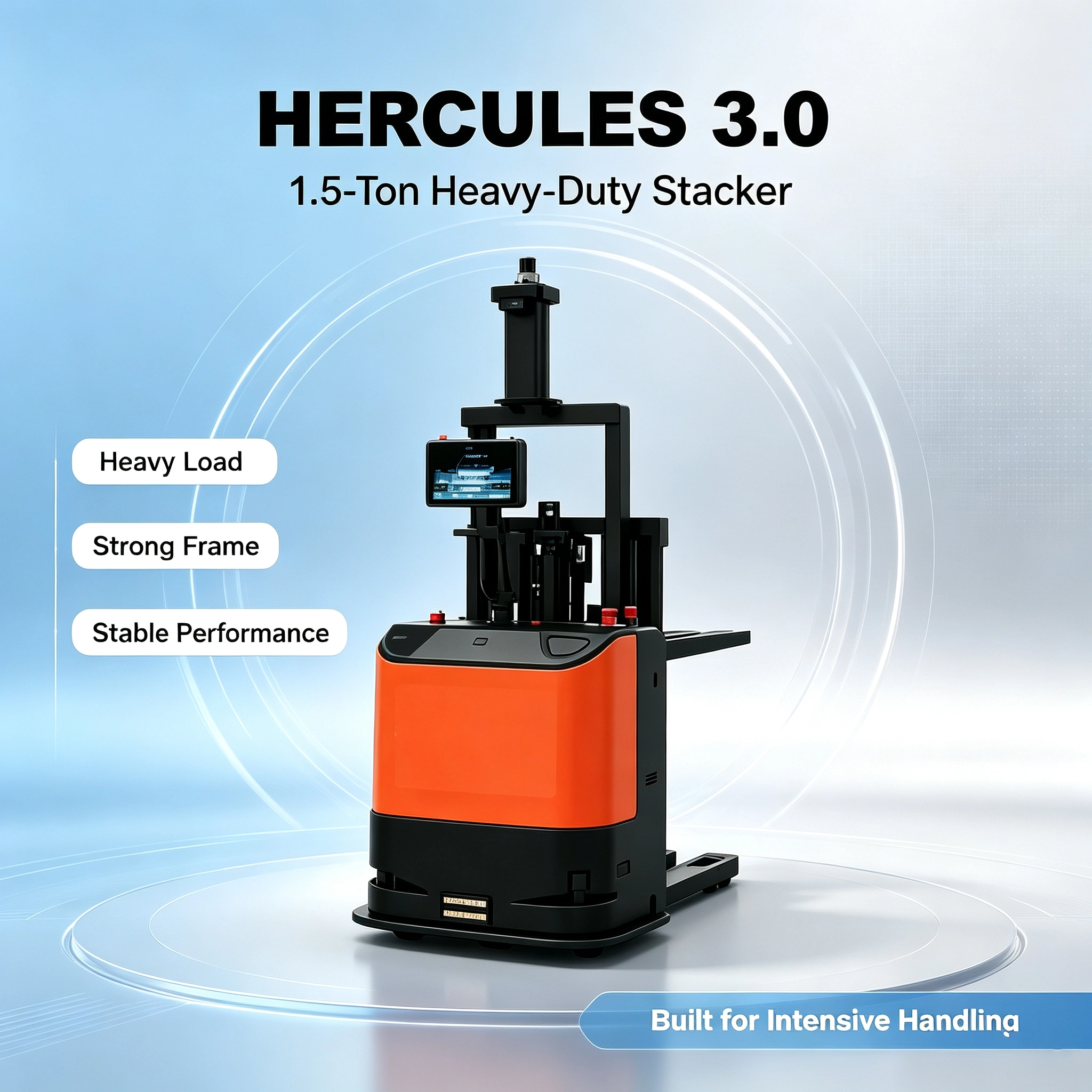

BSI-CC 1.5T Electric Forklifts is a dual-mode unmanned pallet handling electric forklift supporting both manual walking control and fully automatic unmanned operation. It delivers a 1500KG heavy load capacity and a maximum 2585mm lifting height to meet high-level stacking demands. With an ultra-small 1.5m turning radius, the forklift operates flexibly inside narrow warehouse aisles. Equipped with 3D camera & LiDAR multi-sensor fusion system, it achieves all-round autonomous obstacle avoidance. It supports automatic recharging and fast battery replacement to realize non-stop 24-hour operation. The single-line long-distance laser radar supports mapping coverage up to 40,000 square meters, making it a reliable automated handling solution for large-scale factories, warehouses, ports and logistics distribution hubs.
BSI-CC 2.0 1.5T Forklift is an upgraded autonomous unmanned forklift designed for automated pallet material handling across multiple industries. It supports a maximum 1500KG load and adopts multi-sensor fusion technology combining 3D cameras and laser radars for intelligent autonomous obstacle avoidance. Equipped with quick-disassembly battery structure, it supports fast battery replacement and automatic recharging to achieve 24-hour non-stop operation. The optimized 550mm fork arms perfectly fit small Euro pallets, while hydraulic side shift enables compatibility with standard pallets over 1.2m. Compact narrow-body design, marker-free laser navigation and all-round safety sensing make it the ideal unmanned handling solution for factories, warehouses, ports and logistics distribution hubs.
BSI-CC 1.0 1.5T is a lightweight autonomous unmanned pallet forklift built for indoor and semi-outdoor cargo handling. It supports 1500kg heavy cargo transportation with laser SLAM navigation that eliminates the need for reflective markers to cut deployment costs. Compact narrow-body design with small turning radius adapts to narrow warehouse aisles. Equipped with pallet recognition function, multi LiDAR sensors, 3D obstacle avoidance and safety bumpers, it realizes full 360° three-dimensional safety protection. Dual charging modes and long-lasting lithium iron phosphate battery support all-day material transportation for factories, logistics hubs, ports and distribution centers.
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053

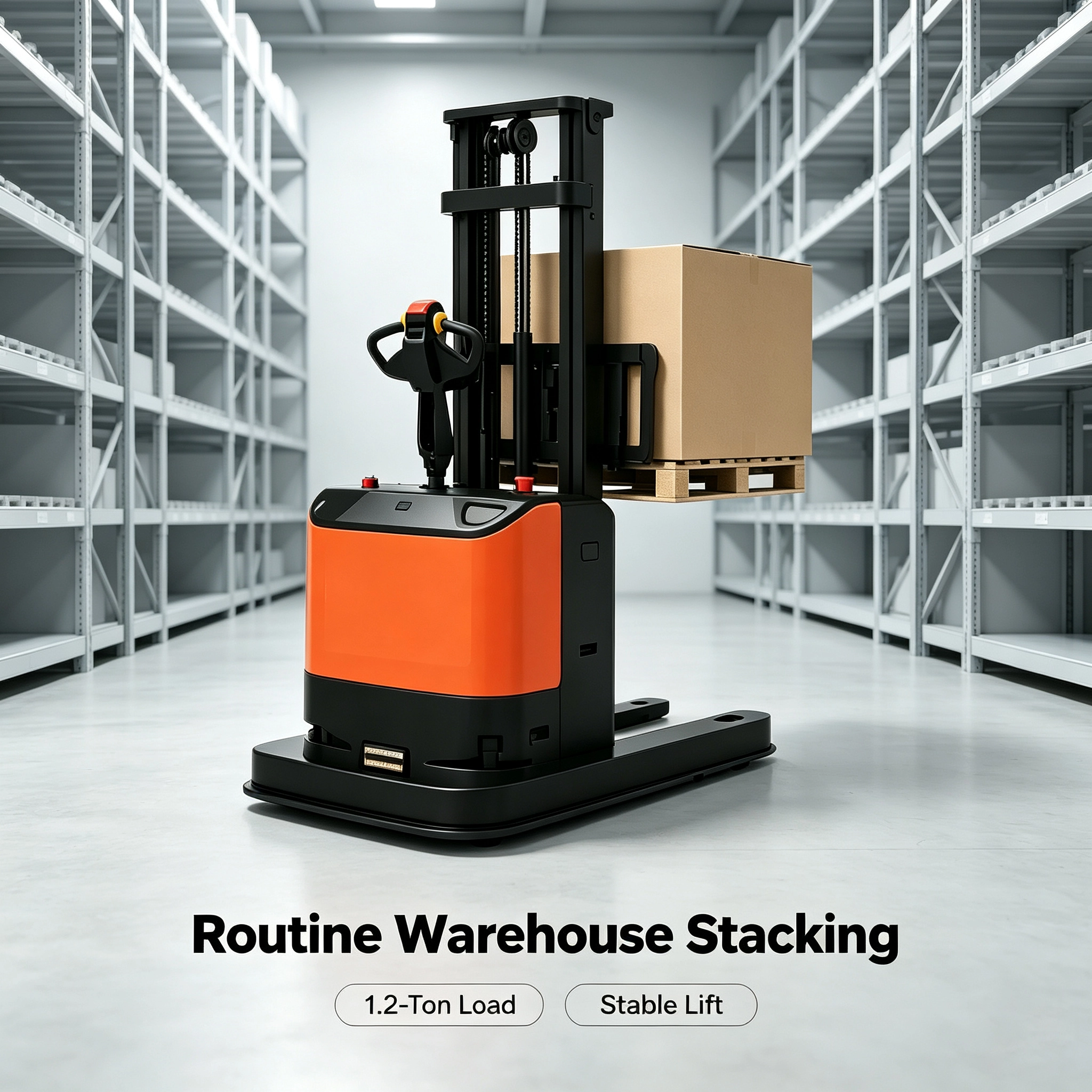

Load Capacity: 1200 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
Load Capacity: 1000 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Wheel Parameters Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Wheel Track Front Wheel Track: 866mm Rear Wheel Track: 525mm
Aisle Width Requirement
Speed Performance Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Motor & Brake Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Power System Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Control & Display System Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch
Hardware Buttons & Safety 1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Noise Standard Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
