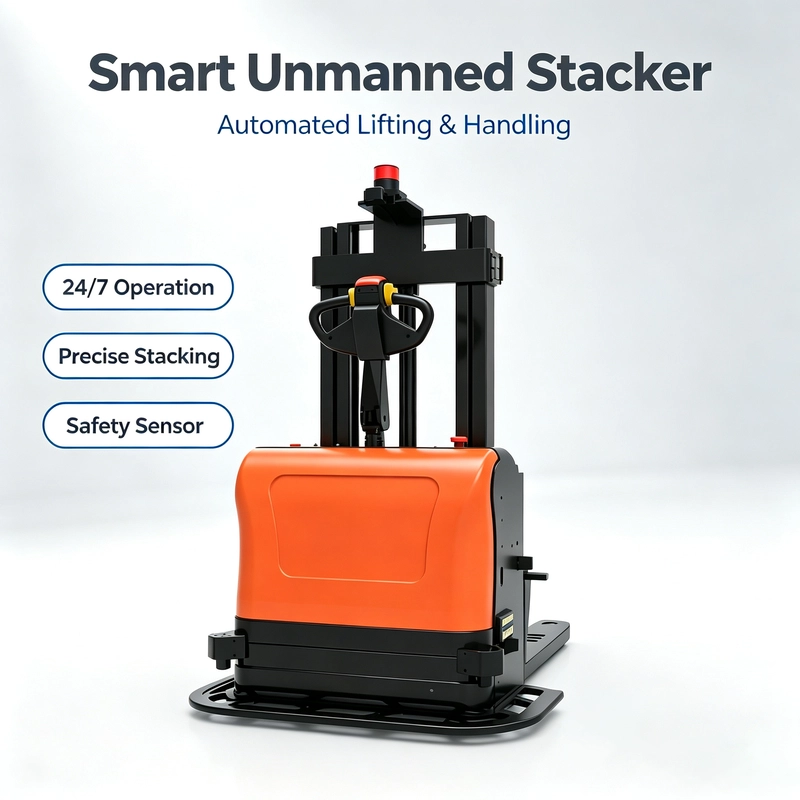

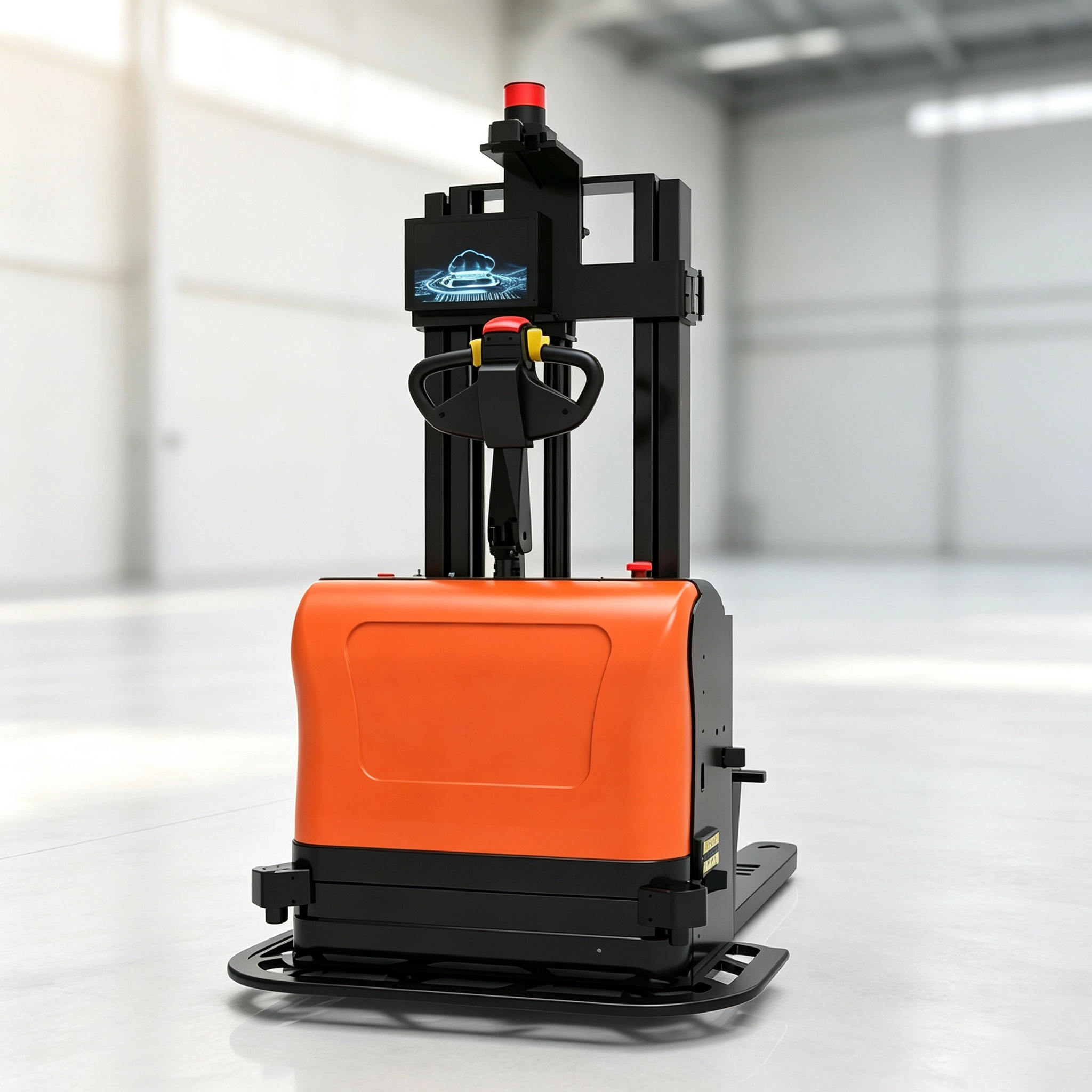

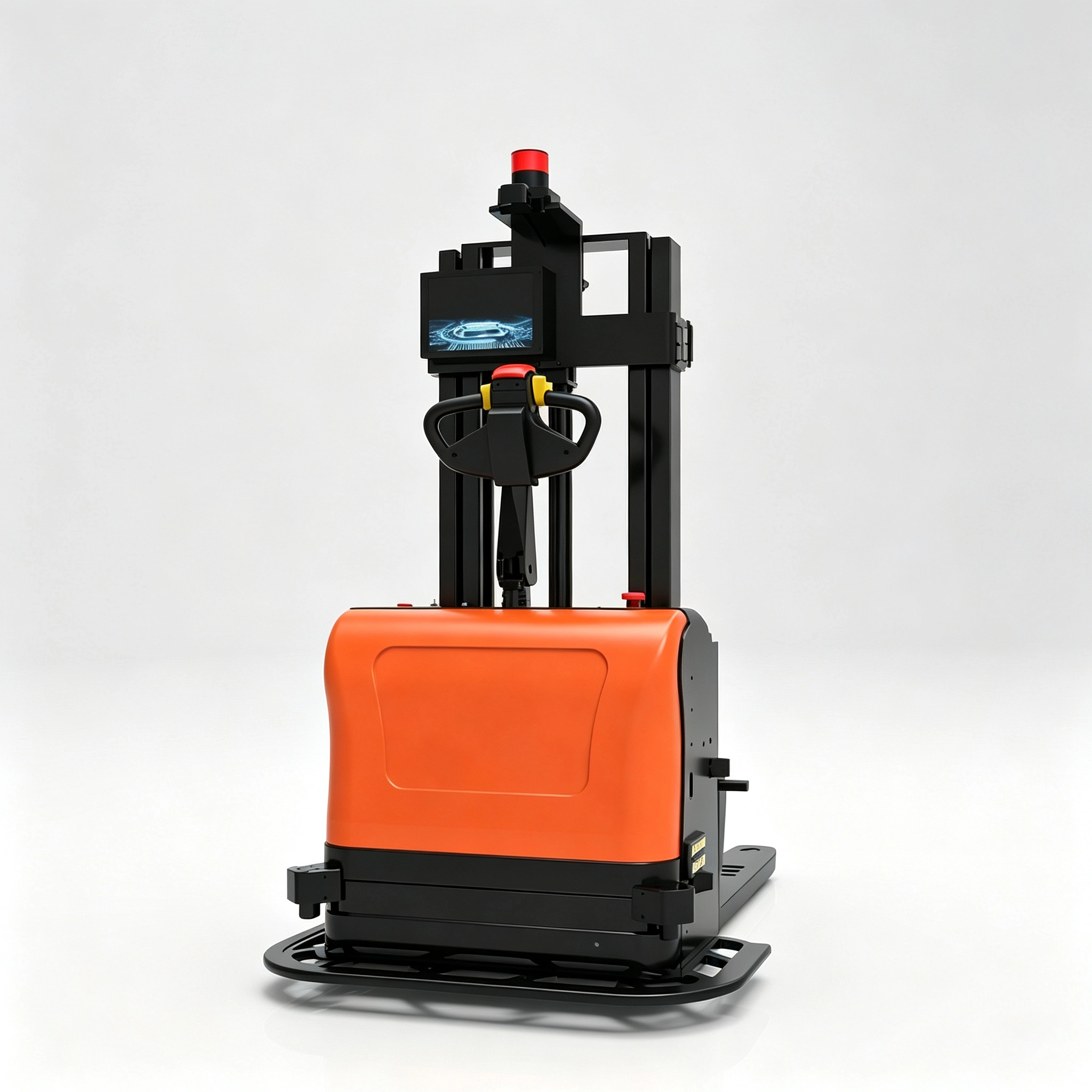

BSI-CC 1.5T Electric Forklifts

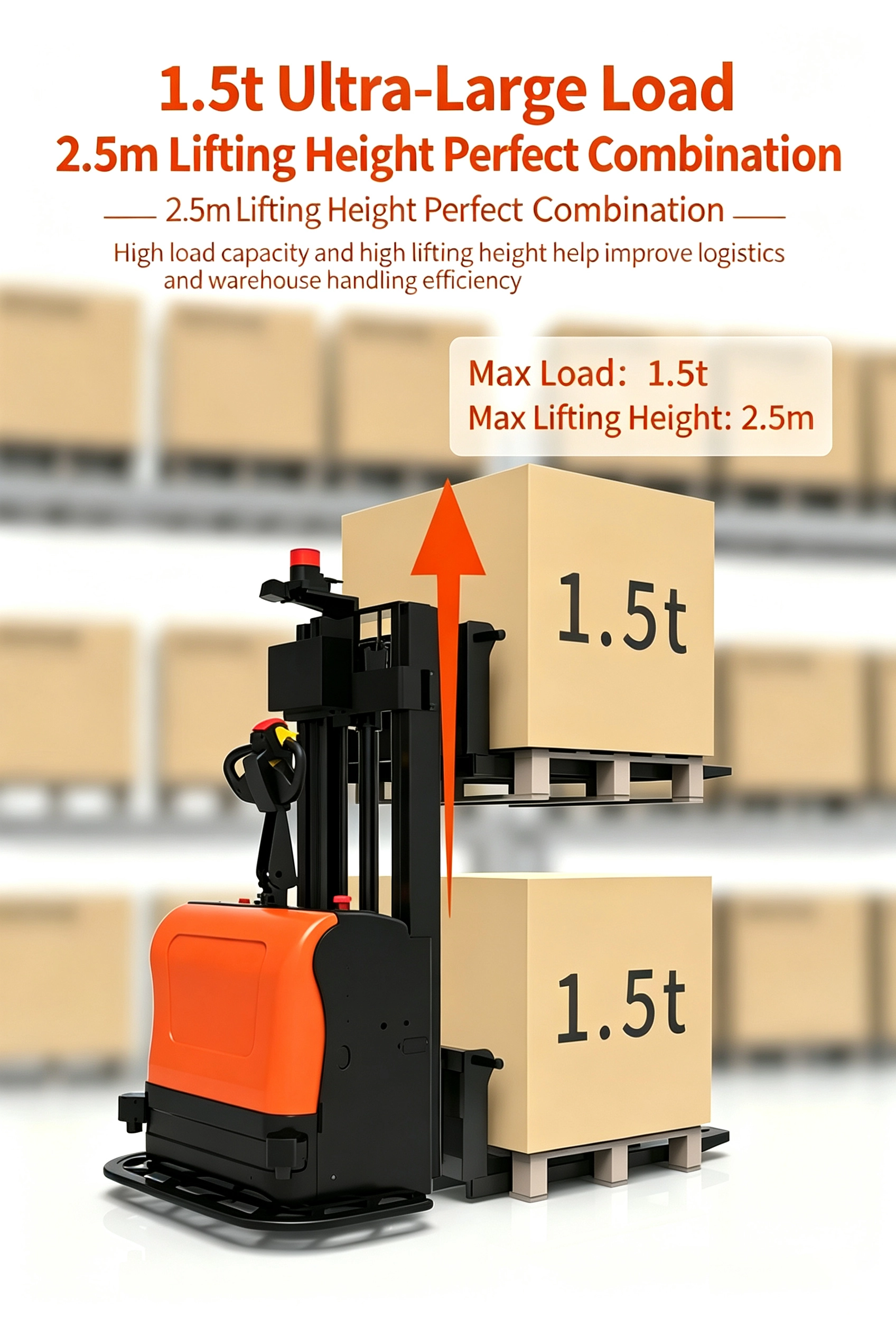

• 2585mm High Lifting Height for Efficient High-Level Stacking
This electric forklift features a maximum lifting height of 2585mm, combining strong 1.5-ton load capacity with high lifting performance. It completes high-position pallet stacking, storage and retrieval tasks efficiently, greatly improving the space utilization rate of high-bay warehouses and overall logistics throughput.
• 1500KG Heavy-Duty Load for Wide Industrial Applications
Built with robust sheet metal structure and stable hydraulic lifting system, the electric forklift stably transports 1.5-ton palletized goods. It covers full handling demands of manufacturing workshops, logistics warehouses, ports and cargo terminals, supporting multi-industry automated material transportation with wider application scope.

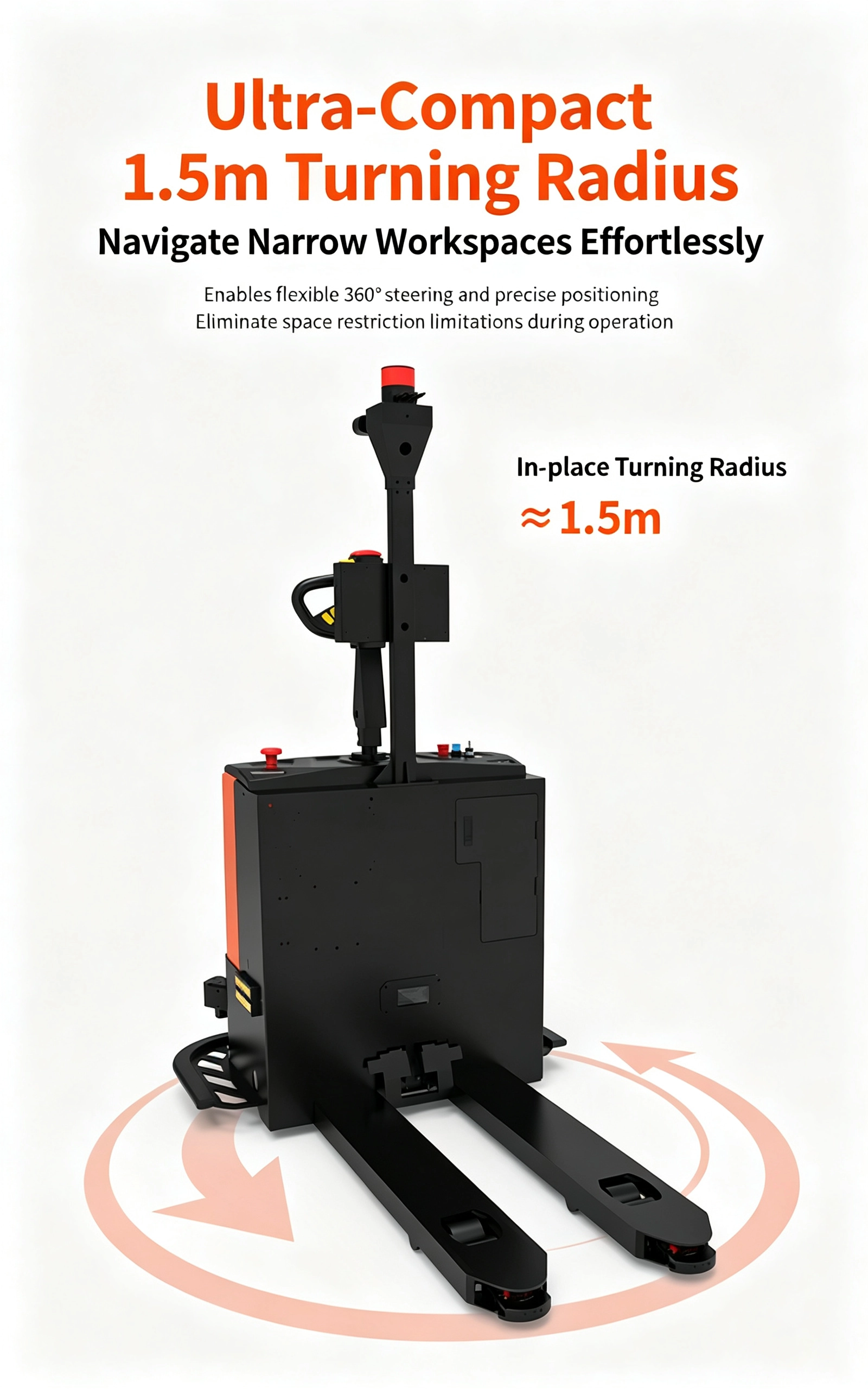

• Ultra-Small 1.5m In-place Turning Radius for Narrow Aisles
Designed with a compact body and only 1.5m turning radius, the electric forklift can flexibly turn and shuttle inside narrow storage passages. It adapts to compact warehouse layouts, maximizes storage space and solves space restriction problems of traditional handling equipment.

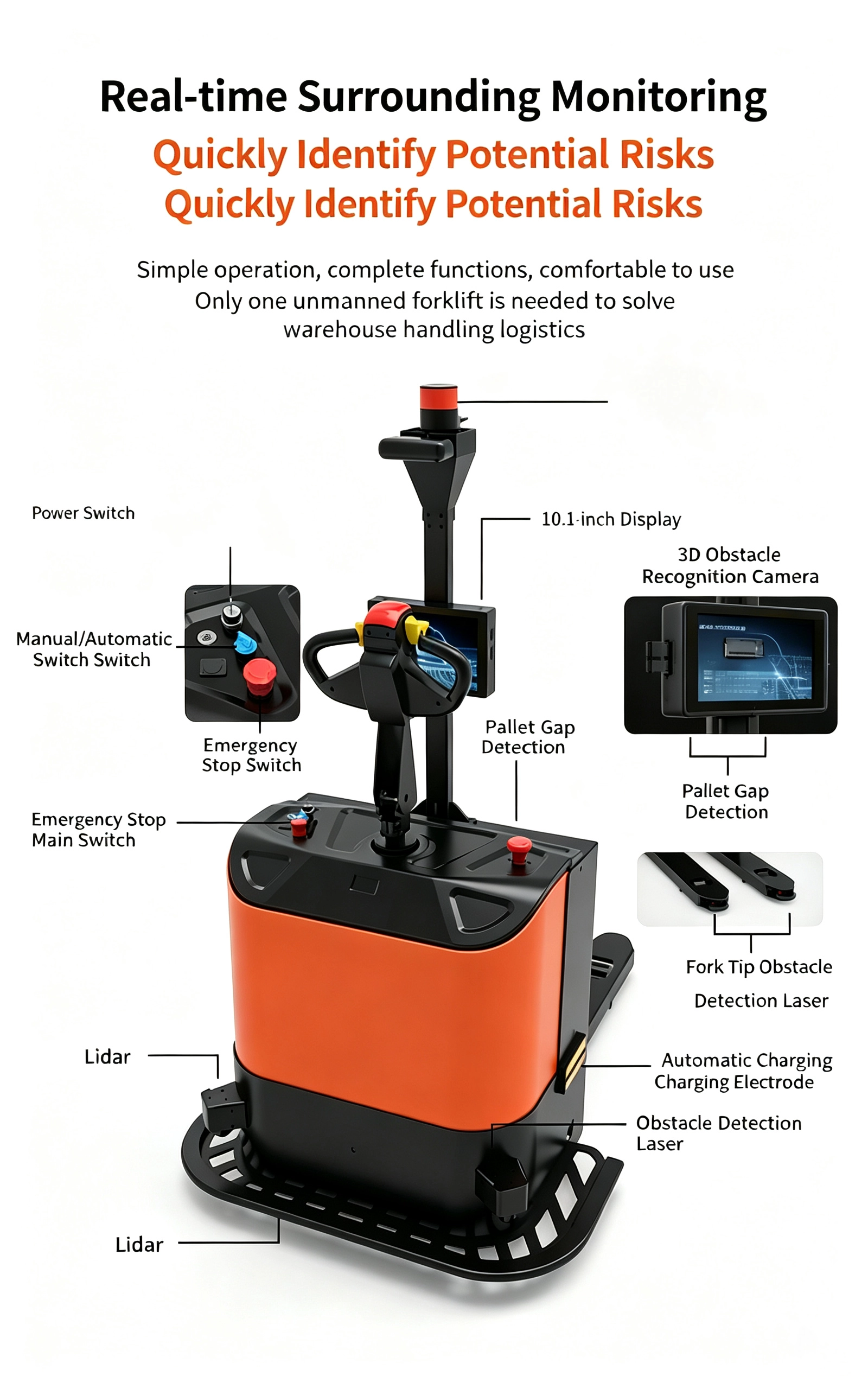

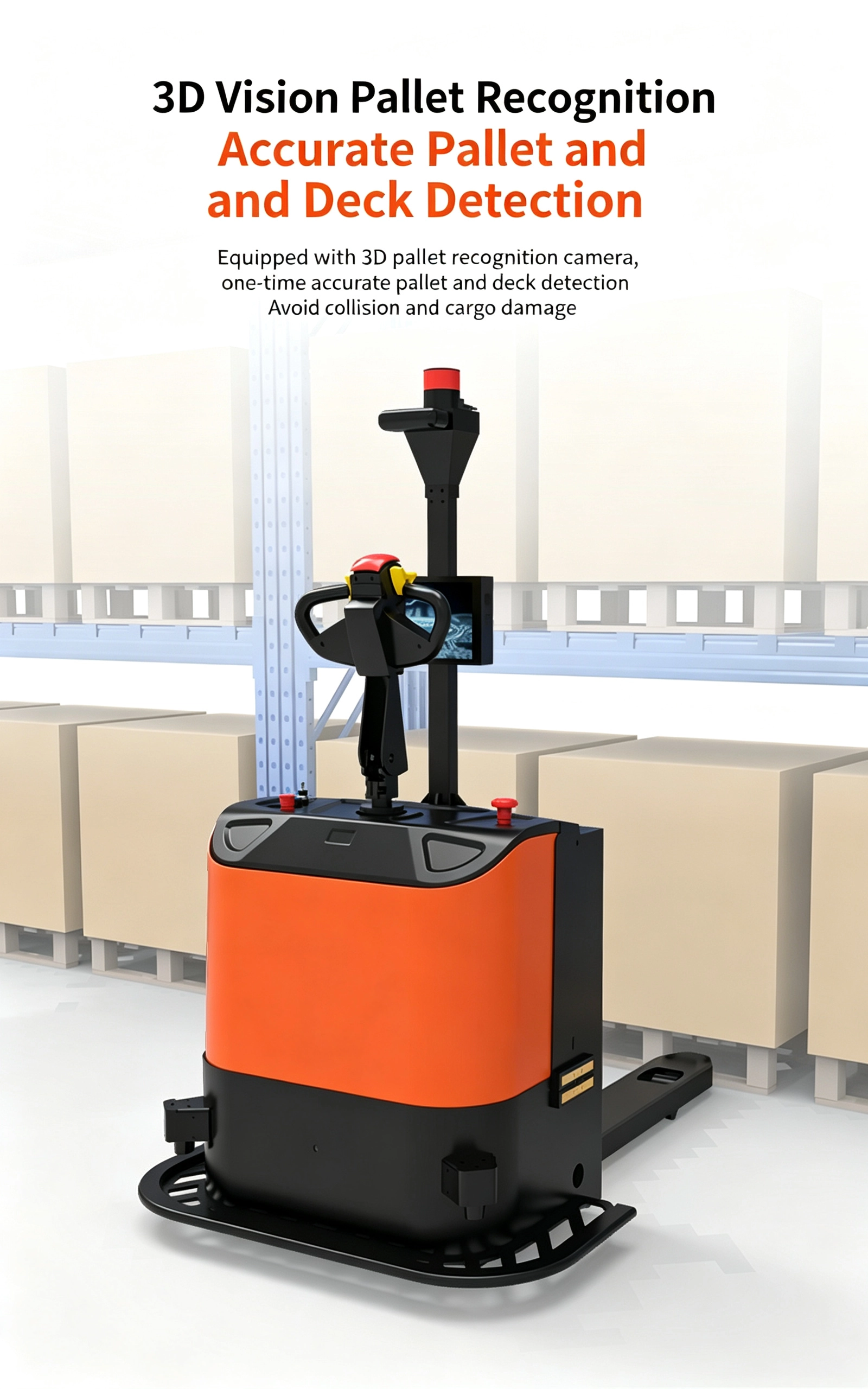

• 3D Camera + Laser Radar Multi-Sensor Fusion Autonomous Obstacle Avoidance
Integrated with 50m & 20m laser radars and 3D depth camera, the multi-sensor fusion system realizes 360° real-time environmental perception. It actively identifies dynamic pedestrians, static shelves and scattered cargo, automatically decelerates or stops to prevent collision, ensuring safe unmanned operation in complex mixed working scenes.

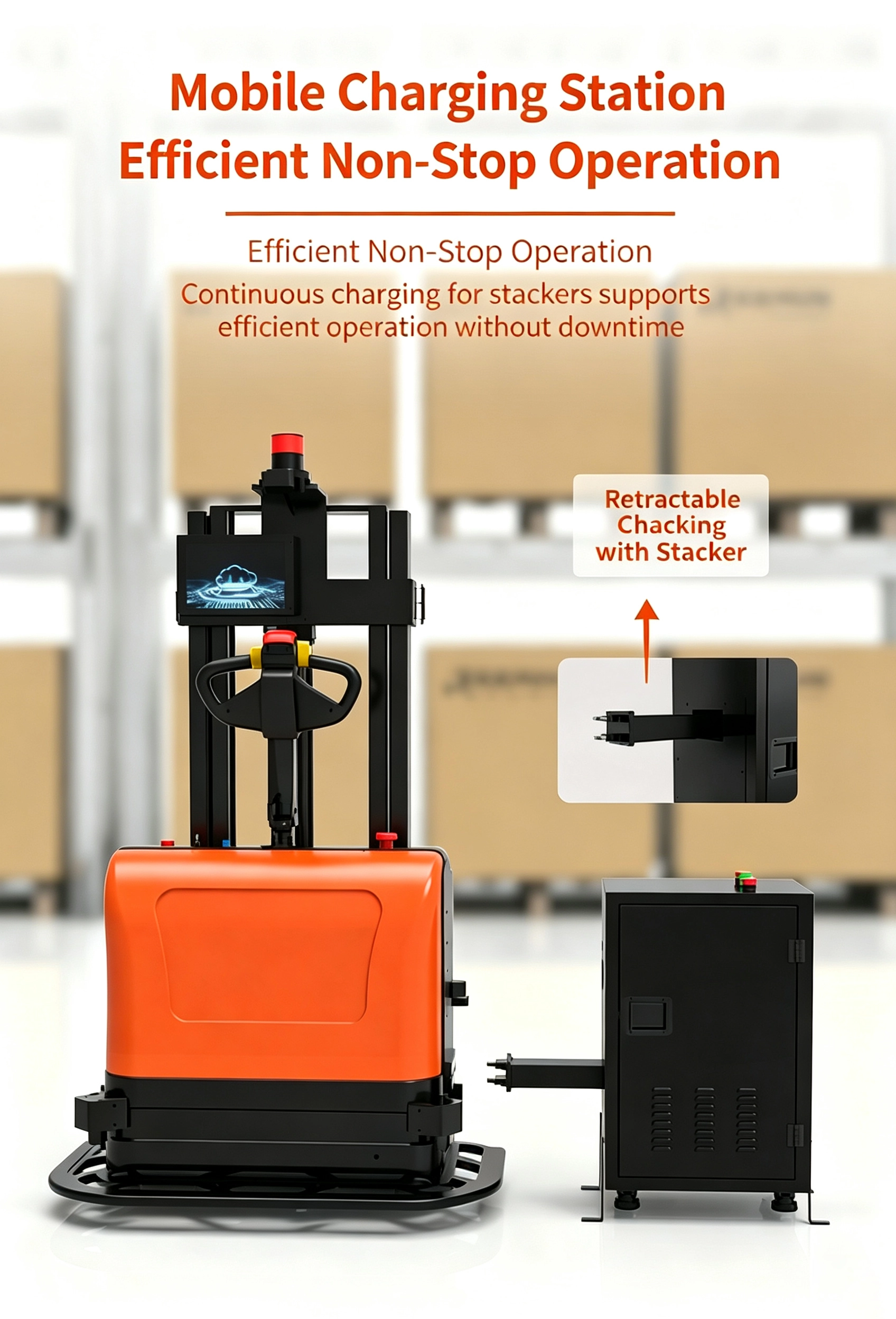

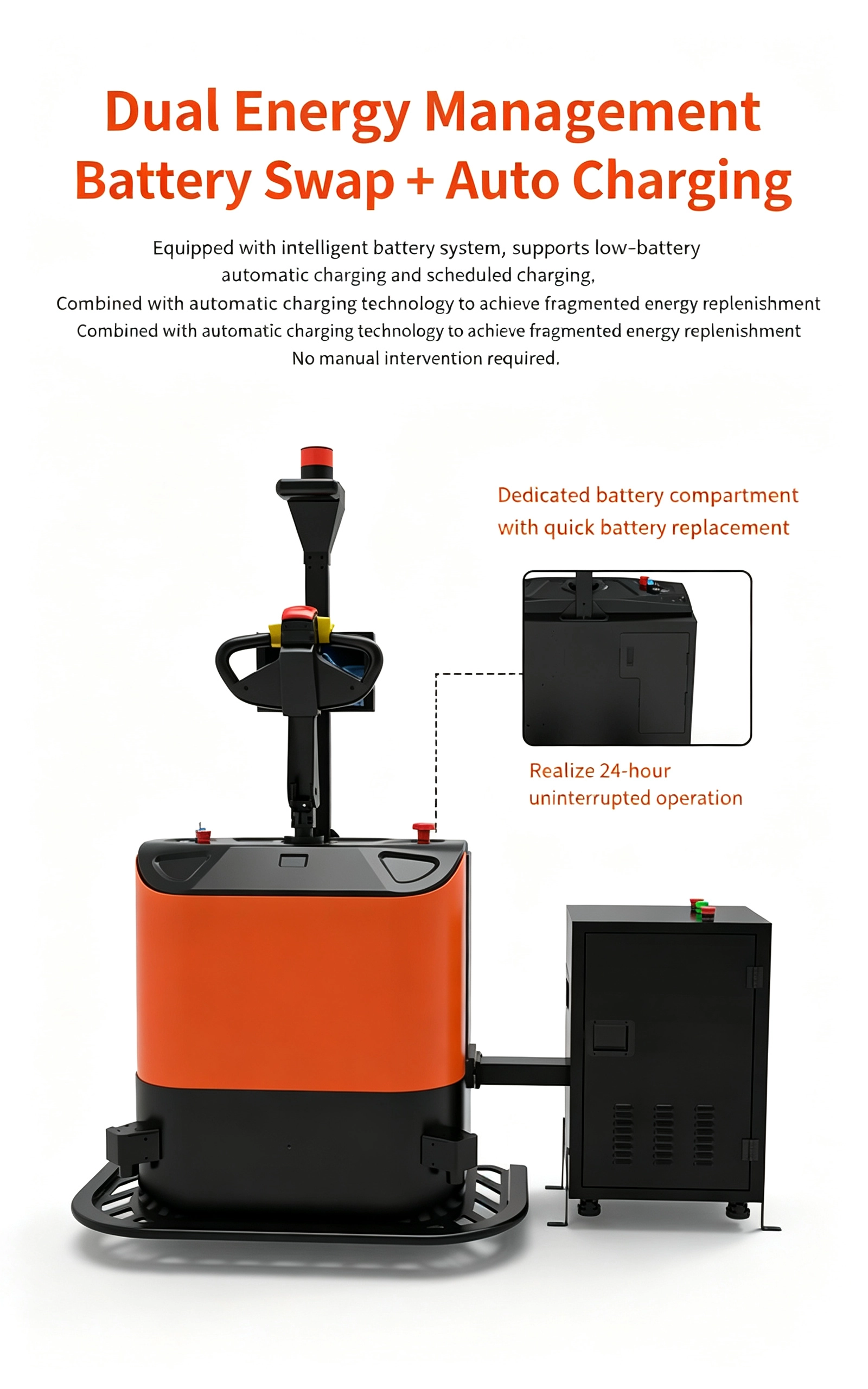

• Auto Charging & Quick Battery Swap for 24/7 Non-Stop Operation
Two power supply solutions are available to eliminate production downtime. The electric forklift can automatically drive back to charging piles for unattended charging, while fast battery swap realizes instant power replenishment. Matched with 48V/36AH lithium iron phosphate battery that runs 6 hours fully loaded, the equipment supports round-the-clock continuous material handling.
• Long-Distance Single-Line LiDAR Supports 40,000㎡ Large-Scale Mapping
Equipped with long-range single-line laser radar with 60m detection range, the electric forklift supports one-time SLAM mapping for sites up to 40,000 square meters. It delivers stable positioning and navigation for large factories, big logistics warehouses and vast cargo yards without frequent map segmentation or reconstruction.
• Dual Operation Modes: Manual Walking & Full Automation
Two operation modes satisfy diverse working demands: pedestrian walking mode for temporary short-distance manual handling, and fully automatic unmanned mode for long-cycle repetitive pallet transportation. The 10.1-inch touch screen intuitively displays real-time running data, battery level and task status for easy monitoring and parameter adjustment.
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .

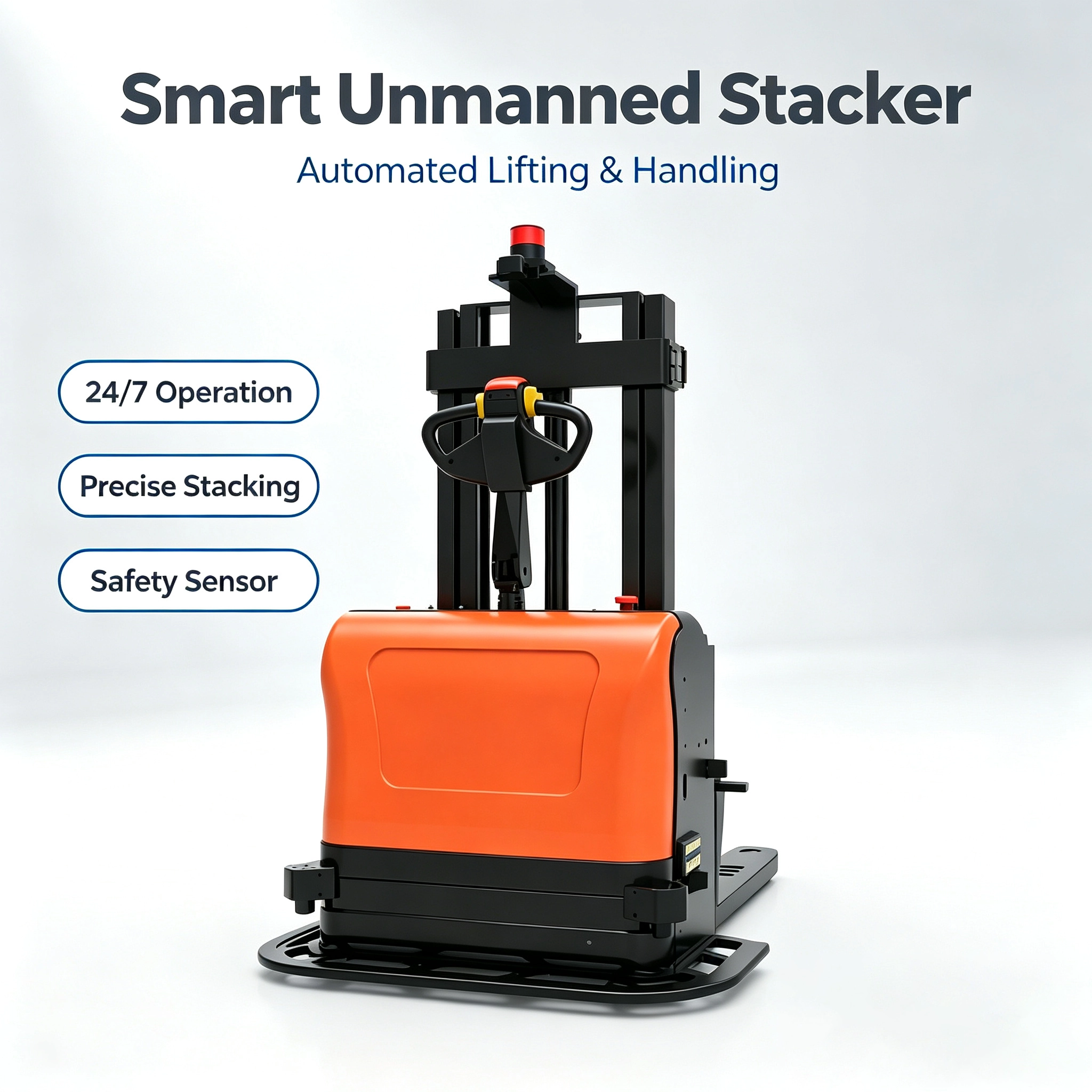

Mini 2.0 Autonomous Forklift Unmanned Stacker Compact AGV for Narrow Aisle Operations
BSI-CC 2.0 1.5T Forklift is an upgraded autonomous unmanned forklift designed for automated pallet material handling across multiple industries. It supports a maximum 1500KG load and adopts multi-sensor fusion technology combining 3D cameras and laser radars for intelligent autonomous obstacle avoidance. Equipped with quick-disassembly battery structure, it supports fast battery replacement and automatic recharging to achieve 24-hour non-stop operation. The optimized 550mm fork arms perfectly fit small Euro pallets, while hydraulic side shift enables compatibility with standard pallets over 1.2m. Compact narrow-body design, marker-free laser navigation and all-round safety sensing make it the ideal unmanned handling solution for factories, warehouses, ports and logistics distribution hubs.

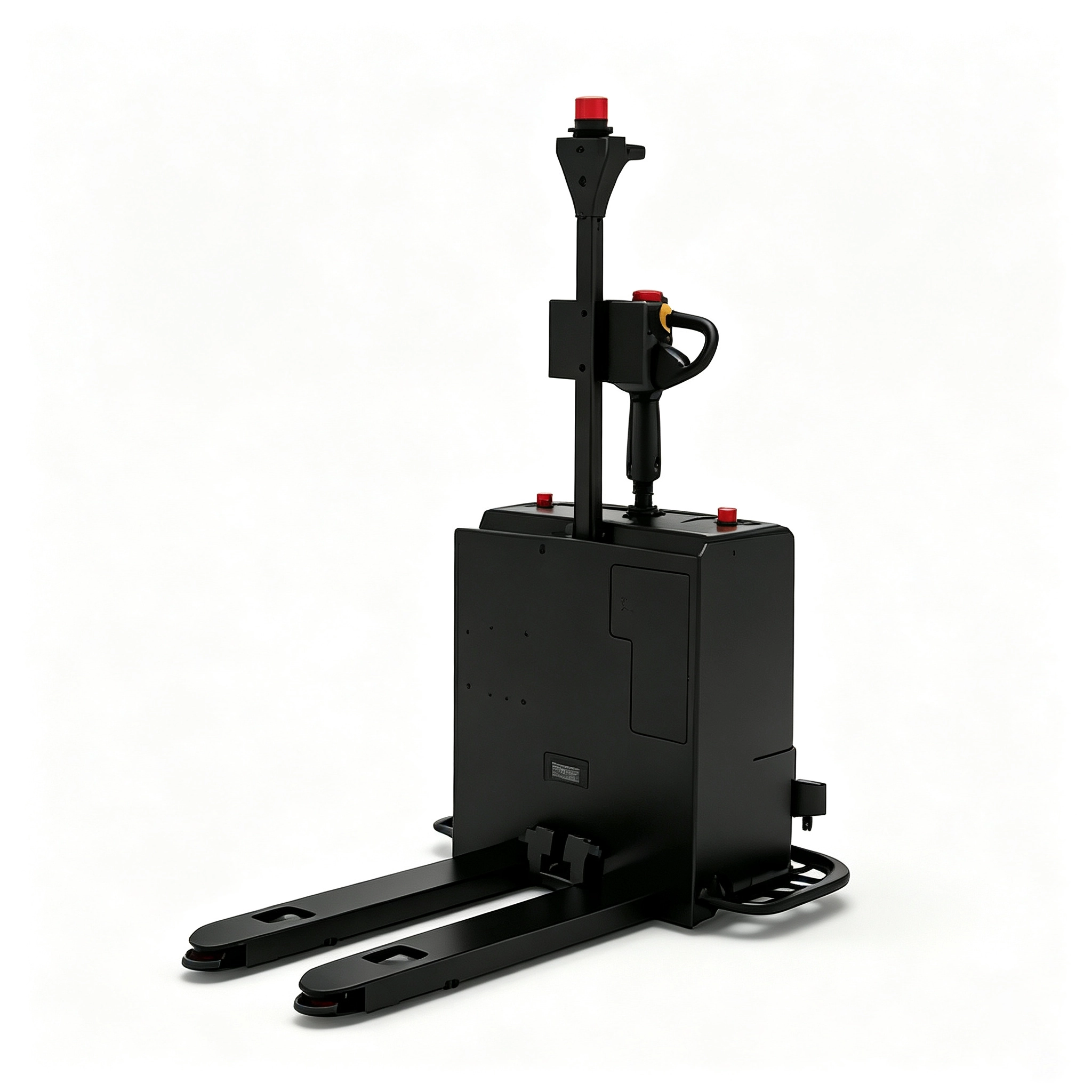

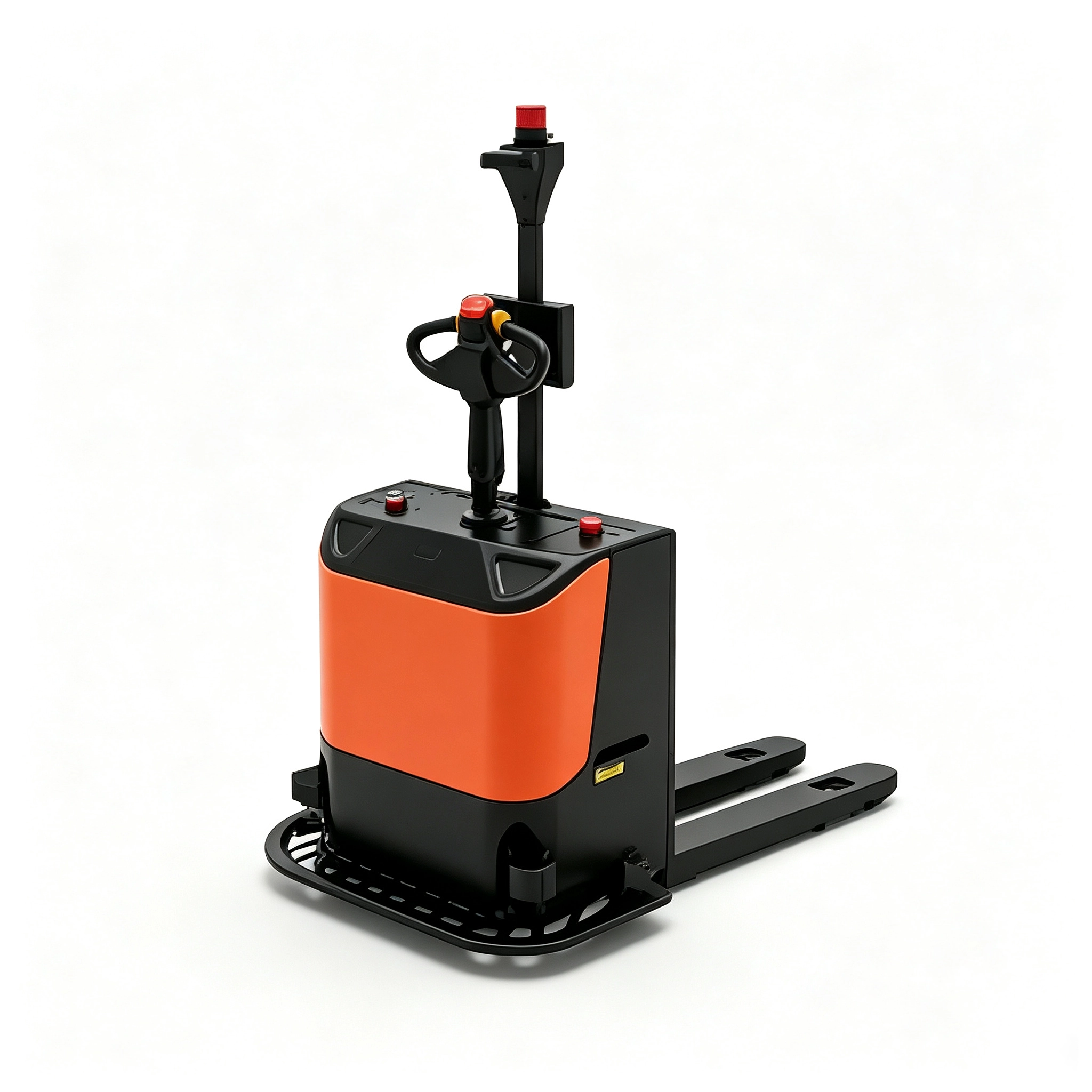

BSI-CC 1.0 1.5T is a lightweight autonomous unmanned pallet forklift built for indoor and semi-outdoor cargo handling. It supports 1500kg heavy cargo transportation with laser SLAM navigation that eliminates the need for reflective markers to cut deployment costs. Compact narrow-body design with small turning radius adapts to narrow warehouse aisles. Equipped with pallet recognition function, multi LiDAR sensors, 3D obstacle avoidance and safety bumpers, it realizes full 360° three-dimensional safety protection. Dual charging modes and long-lasting lithium iron phosphate battery support all-day material transportation for factories, logistics hubs, ports and distribution centers.
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
Load Capacity: 1200 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
Load Capacity: 1200 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
Load Capacity: 1000 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Wheel Parameters Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Wheel Track Front Wheel Track: 866mm Rear Wheel Track: 525mm
Aisle Width Requirement
Speed Performance Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Motor & Brake Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Power System Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Control & Display System Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch
Hardware Buttons & Safety 1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Noise Standard Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
