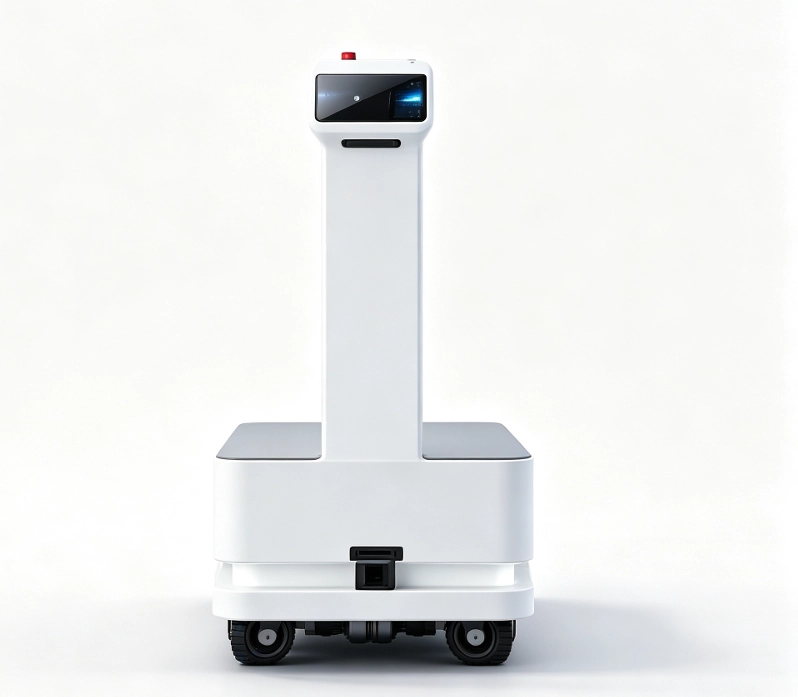

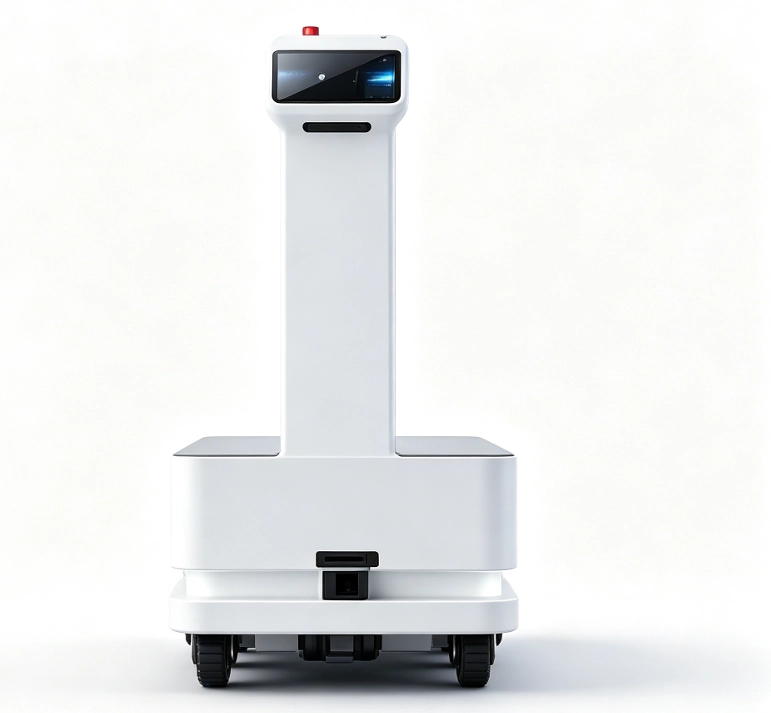

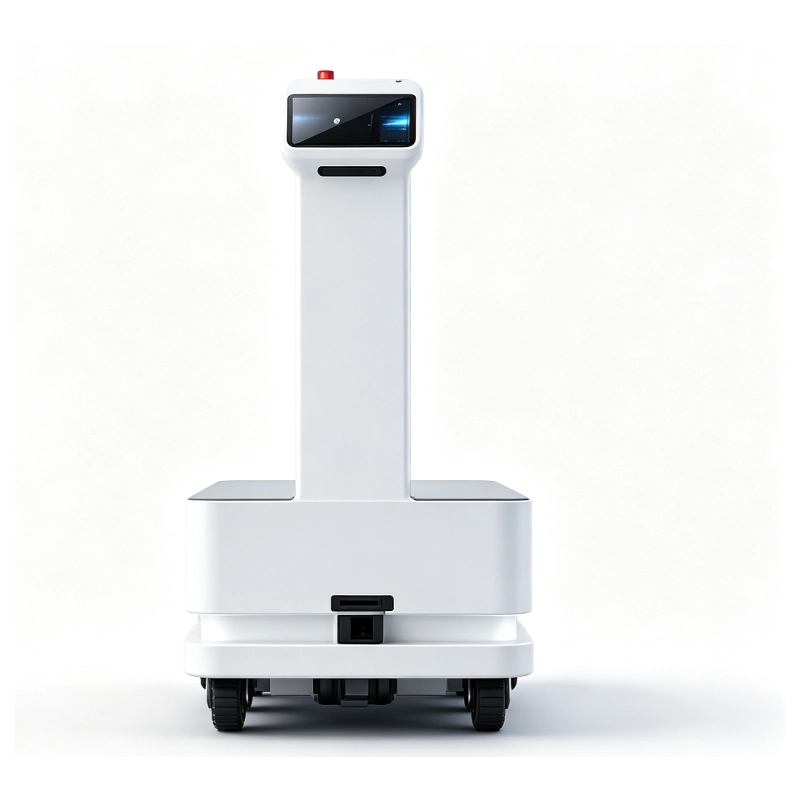

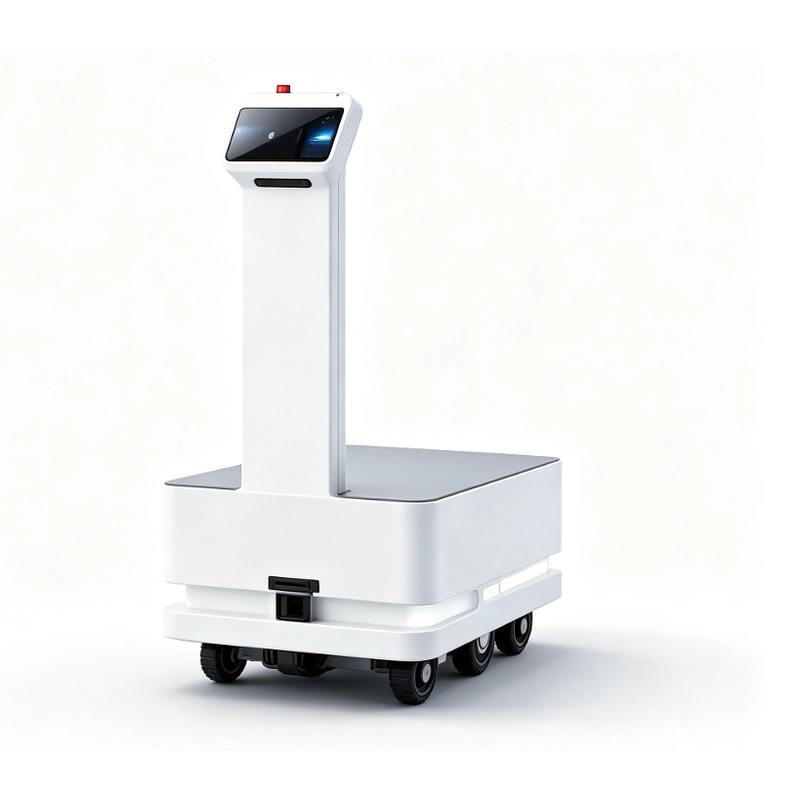

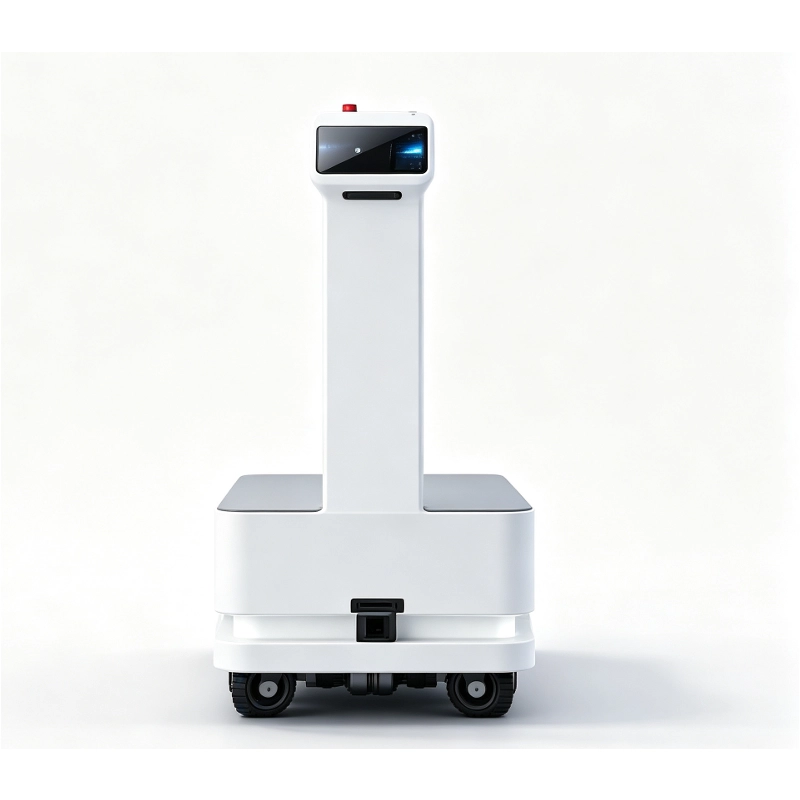

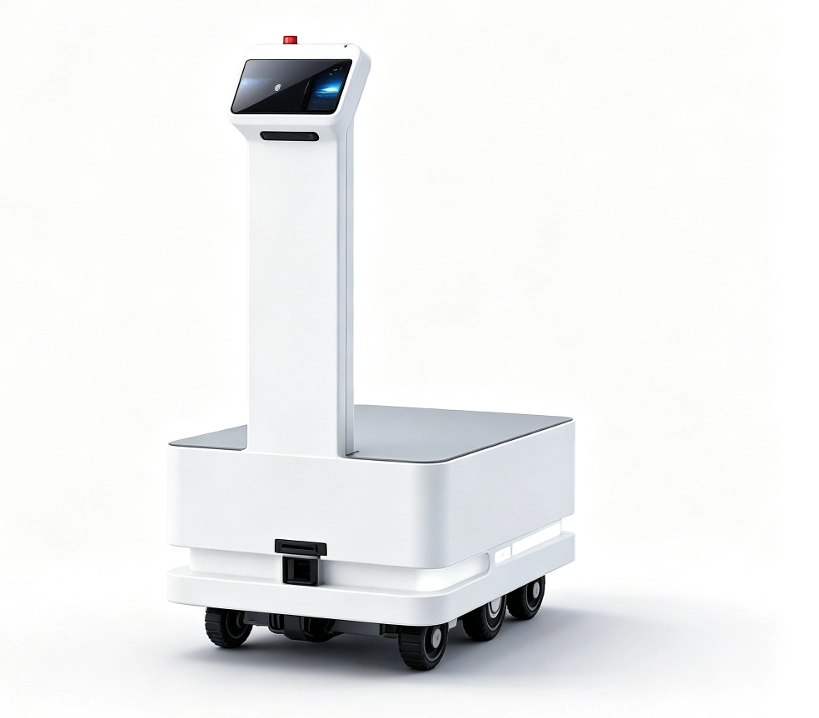

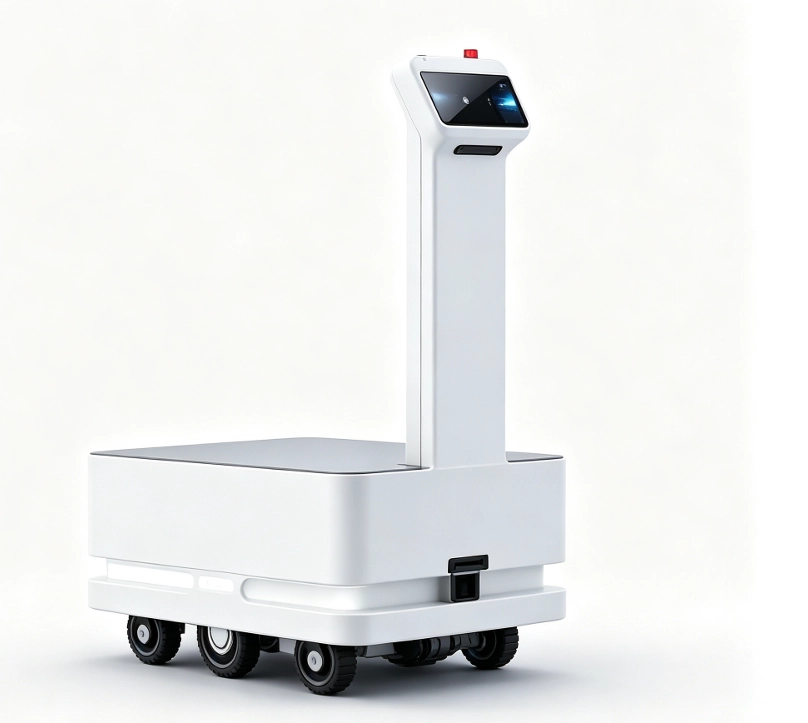

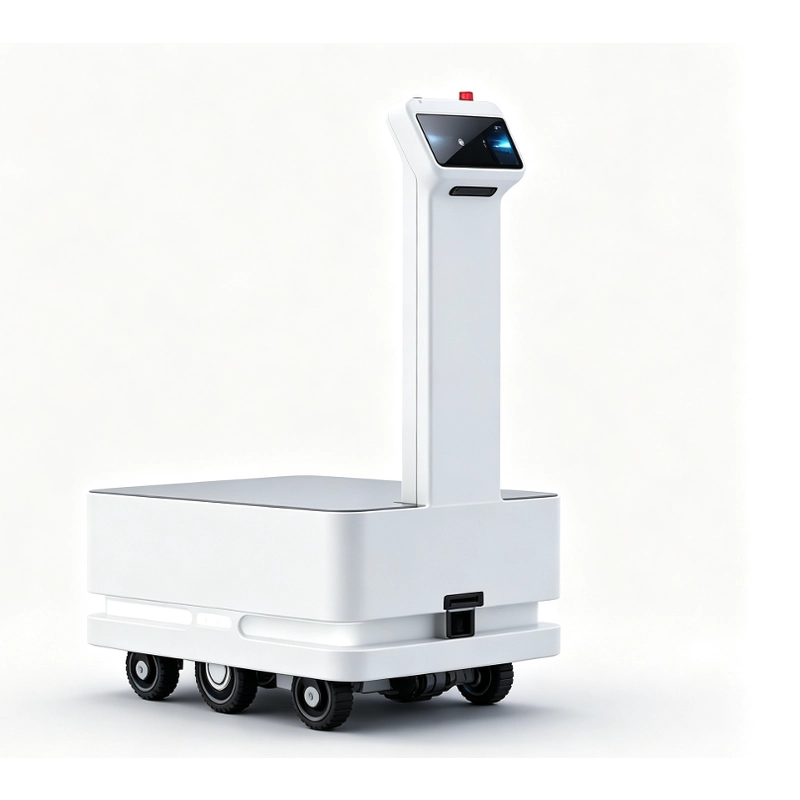

Big Dog 2.0 100kg Autonomous Factory Handling Robot

  • Overall Size: 704mm(L)×470mm(W)×1148mm(H)
  • Max Payload: 100KG
  • Machine Weight: Approx. 55KG
  • Travel Speed: 0.1~1m/s
  • Navigation Accuracy: ±1cm
  • Body Material: Sheet Metal
  • Drive Unit: 5.5-inch Integrated Wheel Motor
  • Sensing Configuration: Front 3D Camera + LiDAR
  • Endurance: 12 hours full load; 22 hours no load
  • Full Charging Time: About 6 hours
  • Charging Method: Direct charging & automatic return charging
  • Power Adapter: Input AC110-240V 50-60HZ, Output 43.2V 5A
  • Charging Pile Specs: Over-current protection, intelligent power-off; Rated output 43.2VDC, 5A
  • Core Functions: Auto obstacle avoidance, exclusive multi-machine scheduling, elevator docking, cross-floor unmanned transport
  • Product Details

1. Core Selling Points

  1. 100KG Super Large Load: Strong bearing capacity to handle heavy industrial materials for daily warehouse and workshop transport.
  2. Stable Square Chassis: Balanced structural design, stable operation on all kinds of indoor ground.
  3. 3D Camera + LiDAR Dual Obstacle Avoidance: Real-time surrounding scanning, automatically slow down, stop or bypass pedestrians, racks and stacked cargo.
  4. ±1cm High Precision Navigation: Centimeter-level positioning ensures stable cyclic operation and accurate docking with production lines and charging piles.
  5. Ultra-Long Battery Life & Safe Dual Charging: 12 hours full-load continuous working time; charging station equipped with over-current protection and auto power-off function.
  6. Independent Multi-Robot Scheduling System: Multiple robots run orderly without route conflict or congestion.
  7. Elevator System Docking: Automatically call, enter and exit elevators to complete full-process unmanned cross-floor delivery.
  8. Wear-resistant Sheet Metal Body: Anti-collision shell adapts to complicated industrial workshop environments.

2. Manual Transport VS Big Dog 2.0 Intelligent Robot

Disadvantages of Traditional Manual Handling

  • Low efficiency: Workers need rest and shift changes, cannot support 24-hour non-stop material transfer.
  • High long-term labor cost: Continuous expenditure on recruitment, staff training and salaries.
  • Hidden safety hazards: Tired operators easily cause trolley collision, cargo falling and personal injury.
  • Cumbersome cross-floor transport: Manual goods delivery between floors wastes a great deal of manpower and time.

Advantages of Big Dog 2.0 Robot

  • 24/7 unattended automatic operation without shift workers.
  • One-time equipment investment largely cuts labor costs with short investment payback cycle.
  • Full-range multi-sensor obstacle avoidance removes collision risks thoroughly.
  • Elevator linkage function realizes fully automatic cross-floor material transportation.
  • Multi-machine collaborative operation greatly improves overall logistics turnover efficiency.

3. Applicable Scenarios

  • Factory Workshops: Assembly line parts delivery, semi-finished & finished goods circulation
  • Scientific Research Institutions: Laboratory sample transportation, automatic distribution of experimental materials
  • Logistics Warehousing: Cargo sorting, rack-to-rack transfer, warehouse inbound and outbound handling
  • Special Industries: Clean workshop transfer, unmanned delivery of lightweight special materials
