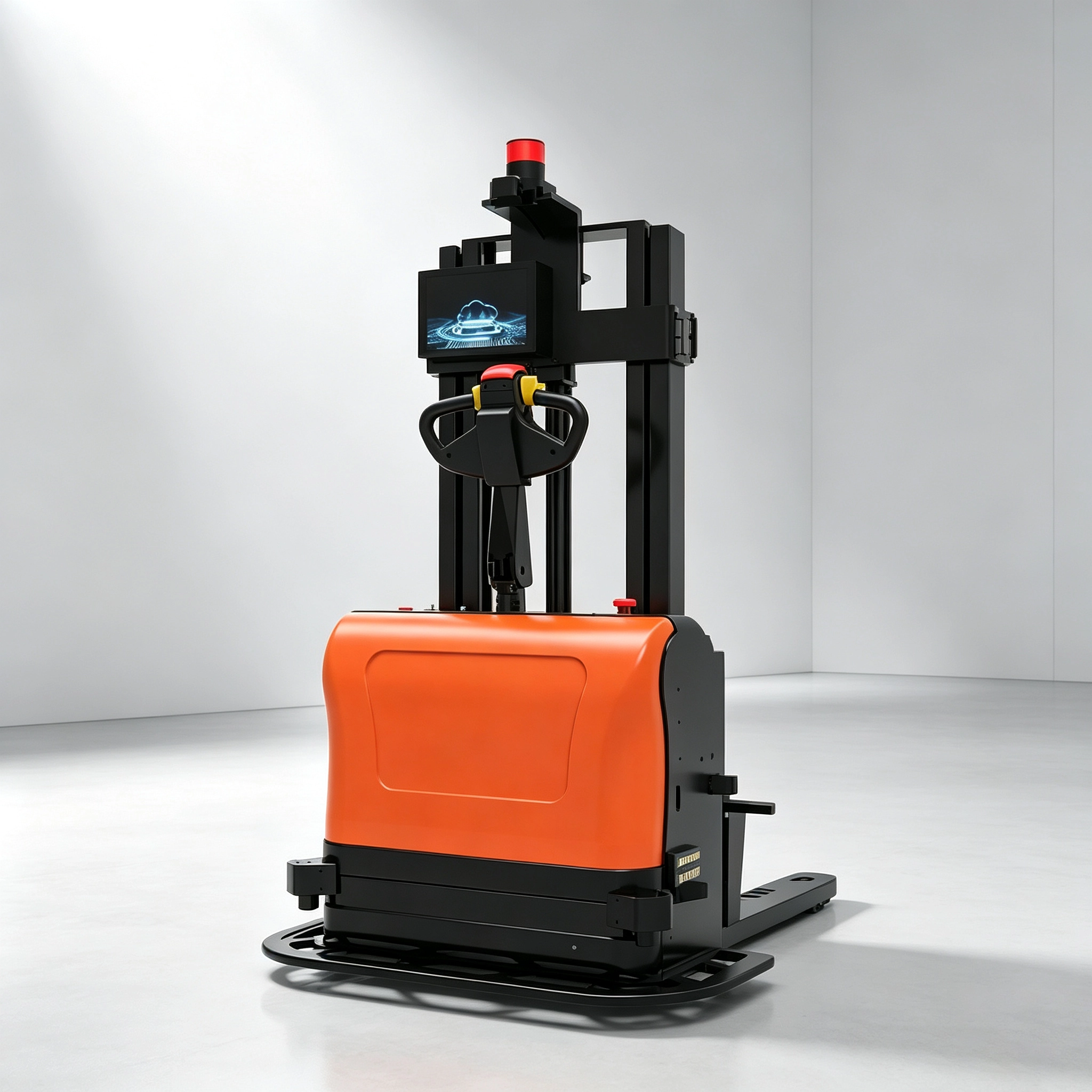

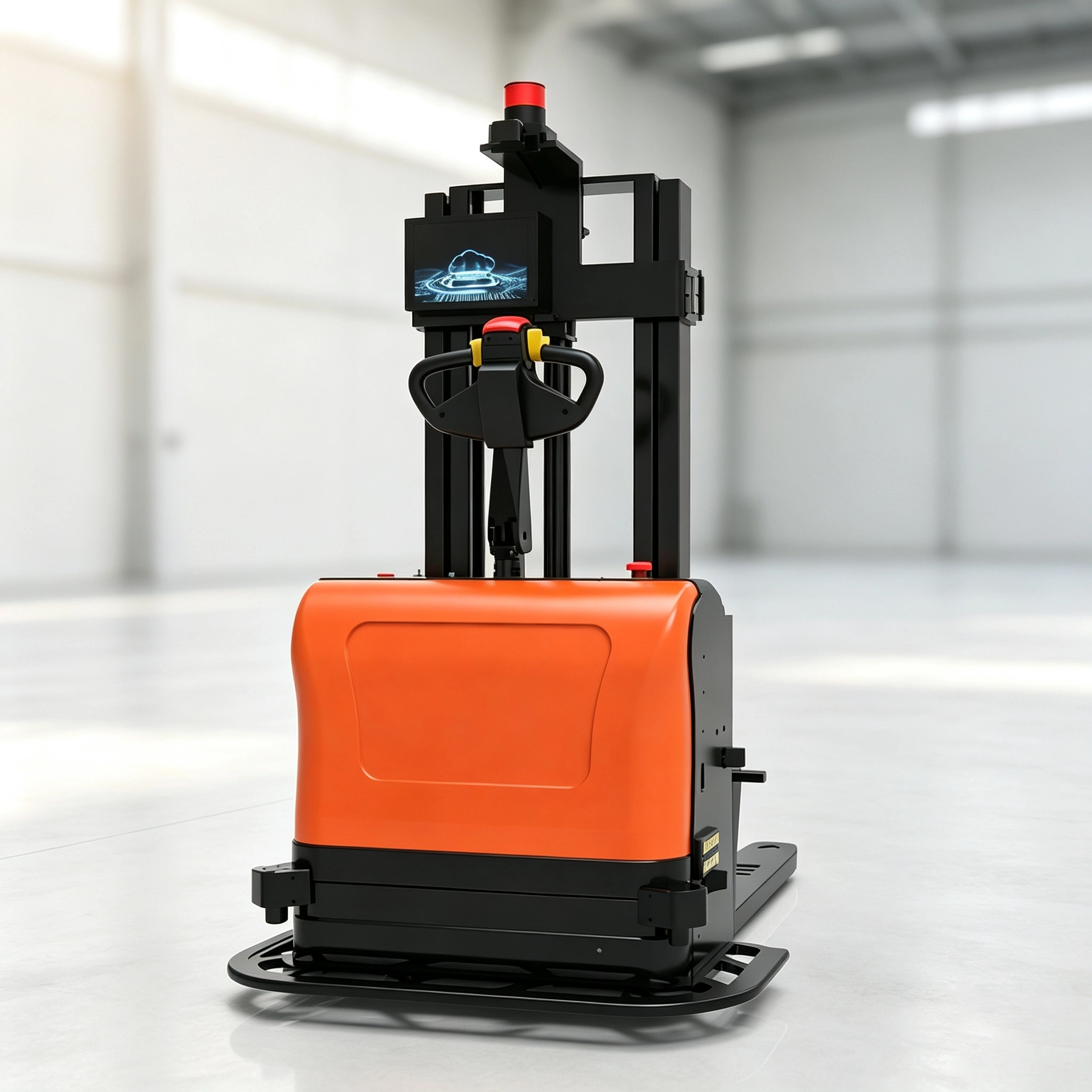

BSI-CC 2.0 1.5T Forklift

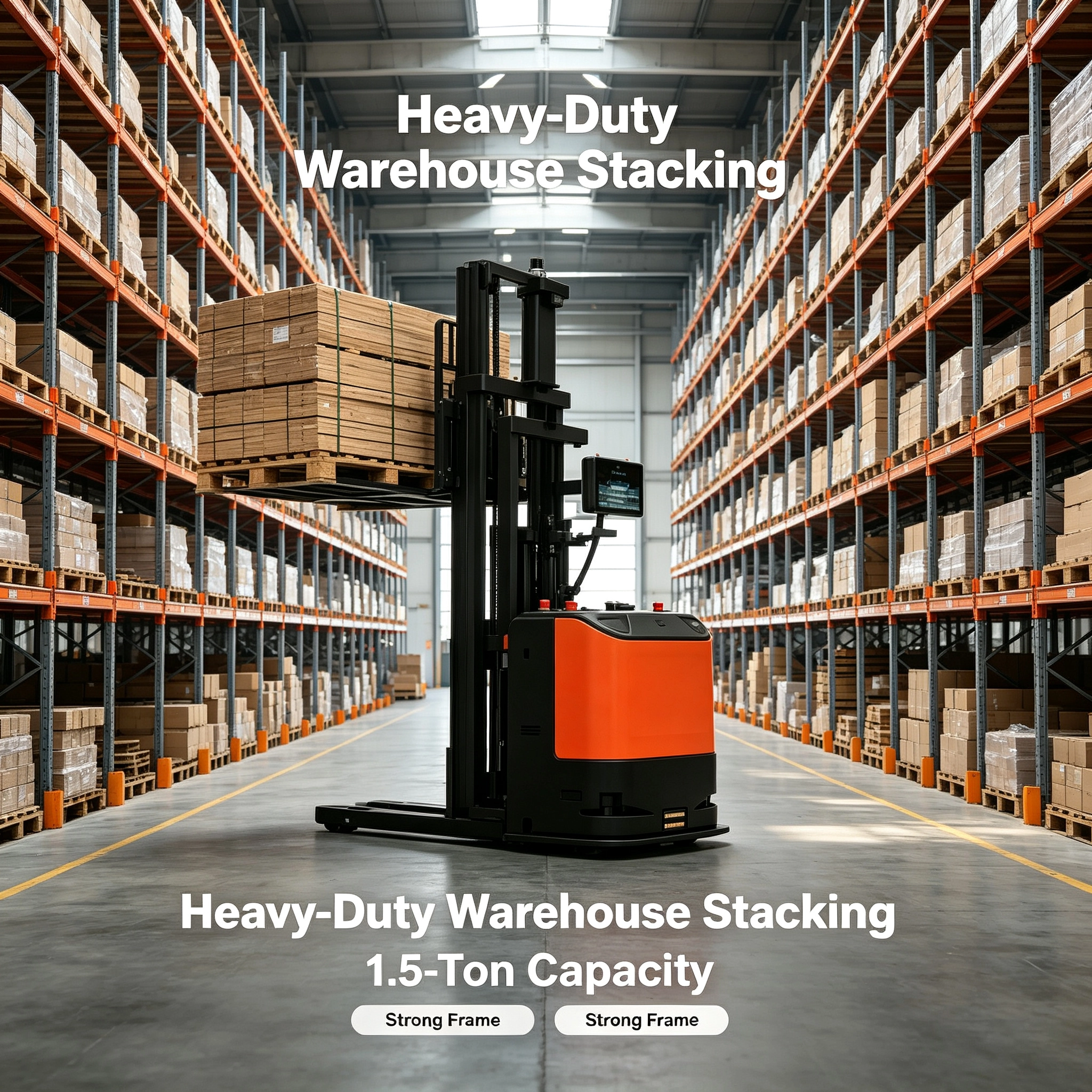

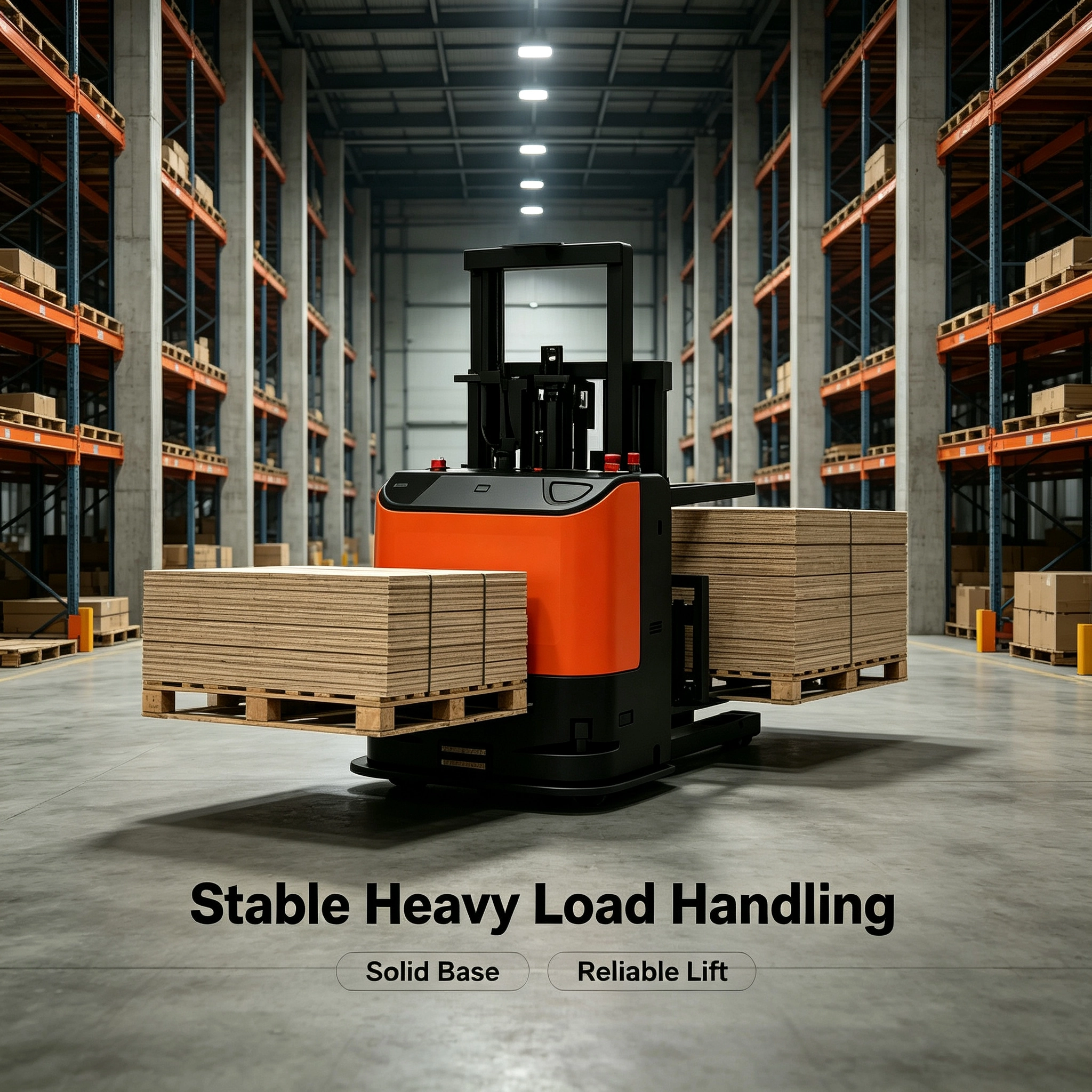

• 1500KG High Load Capacity with Wide Application Coverage Built with sturdy sheet metal frame and stable lifting structure, this unmanned forklift delivers reliable 1.5-ton load-bearing performance. It meets high-frequency inbound, outbound and stacking tasks, covering full scenarios of manufacturing, logistics, transportation and storage industries for broader business application.
• 3D Camera & LiDAR Multi-Sensor Fusion Autonomous Obstacle Avoidance Combining 50m & 25m laser radars with front 3D depth cameras, the multi-sensor fusion system achieves 360° environmental perception. It accurately identifies static pallets, racks and dynamic pedestrians, actively decelerates or stops to avoid collisions, greatly improving operation safety in complex warehouse environments.
• Quick-Disassembly Battery Design for 24/7 Non-Stop Operation Adopts quick-release battery structure for ultra-fast manual battery swap. It only takes about 4 hours to fully charge one battery pack. Dual power supply solutions are available: instant battery replacement for zero downtime or automatic return charging for unattended shifts, supporting continuous 24-hour round-the-clock material handling without production interruption.
• Optimized 550mm Fork Arms with Hydraulic Side Shift Function The upgraded 550mm narrow fork arms are precisely tailored for small-sized Euro pallets to realize stable, accurate fork picking. Equipped with hydraulic side shift function, the fork arms can adjust horizontally to fit standard pallets of 1.2m and above, realizing one machine compatible with multiple pallet specifications to reduce equipment procurement costs.
• Marker-Free Laser SLAM Navigation & Compact Narrow Body Design Configured with multi-group laser radars for laser SLAM mapping without reflective plates, the forklift supports fast on-site deployment and flexible route modification. The 650mm slim body with small turning radius works smoothly in narrow warehouse aisles, maximizing storage space utilization. Navigation accuracy is controlled within ±10cm to guarantee precise pallet docking.
• Long-Lasting Lithium Iron Phosphate Battery & Intuitive Operation Screen Powered by safe 48V/36AH lithium iron phosphate battery, it runs 6 hours under full load and 8 hours empty. The 10.1-inch touch screen displays real-time running status, power data, handling tasks and fault alerts for convenient on-site monitoring and parameter adjustment.
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .

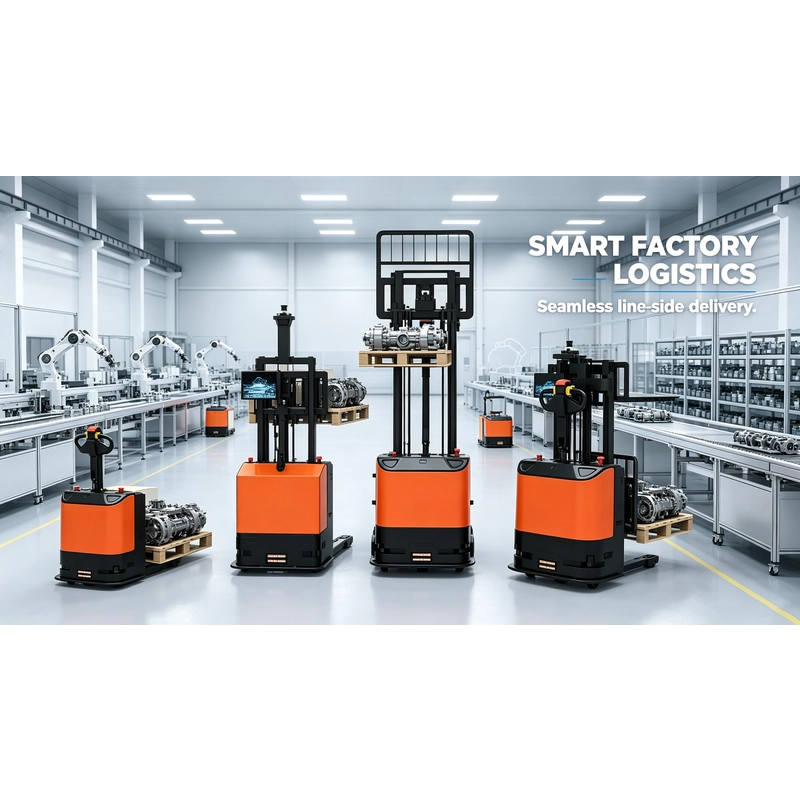

Mini 2.0 Autonomous Forklift Unmanned Stacker Compact AGV for Narrow Aisle Operations
BSI-CC 1.5T Electric Forklifts is a dual-mode unmanned pallet handling electric forklift supporting both manual walking control and fully automatic unmanned operation. It delivers a 1500KG heavy load capacity and a maximum 2585mm lifting height to meet high-level stacking demands. With an ultra-small 1.5m turning radius, the forklift operates flexibly inside narrow warehouse aisles. Equipped with 3D camera & LiDAR multi-sensor fusion system, it achieves all-round autonomous obstacle avoidance. It supports automatic recharging and fast battery replacement to realize non-stop 24-hour operation. The single-line long-distance laser radar supports mapping coverage up to 40,000 square meters, making it a reliable automated handling solution for large-scale factories, warehouses, ports and logistics distribution hubs.
BSI-CC 1.0 1.5T is a lightweight autonomous unmanned pallet forklift built for indoor and semi-outdoor cargo handling. It supports 1500kg heavy cargo transportation with laser SLAM navigation that eliminates the need for reflective markers to cut deployment costs. Compact narrow-body design with small turning radius adapts to narrow warehouse aisles. Equipped with pallet recognition function, multi LiDAR sensors, 3D obstacle avoidance and safety bumpers, it realizes full 360° three-dimensional safety protection. Dual charging modes and long-lasting lithium iron phosphate battery support all-day material transportation for factories, logistics hubs, ports and distribution centers.
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053

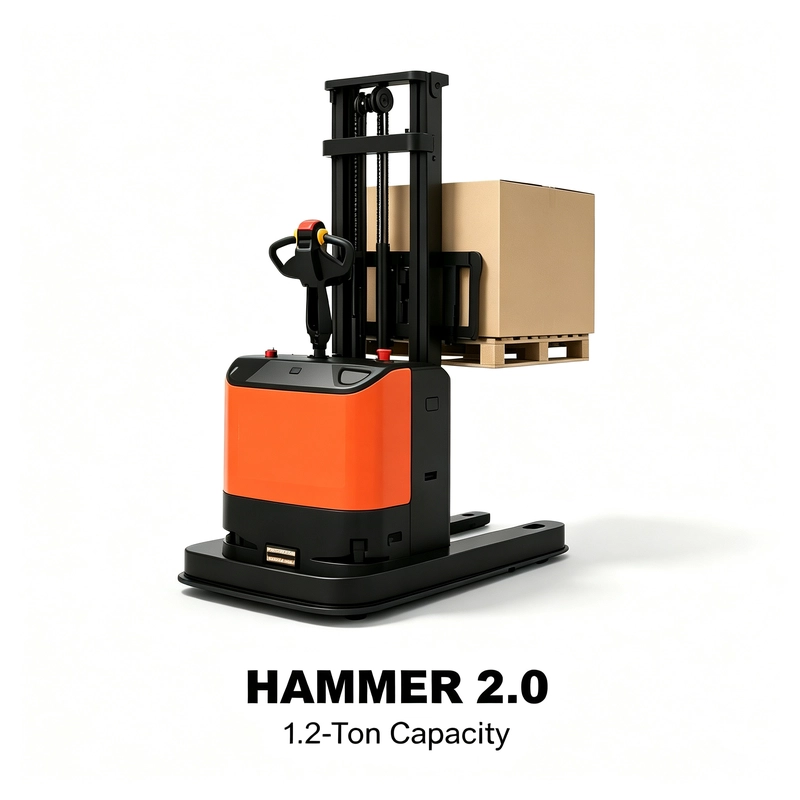

Load Capacity: 1200 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
Load Capacity: 1200 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Front Wheel Track: 866mm Rear Wheel Track: 525mm
Pallet 1000×1200 (Cross Placement): 2200mm Pallet 800×1200 (Lengthwise Placement): 2100mm
Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch touch display
1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053

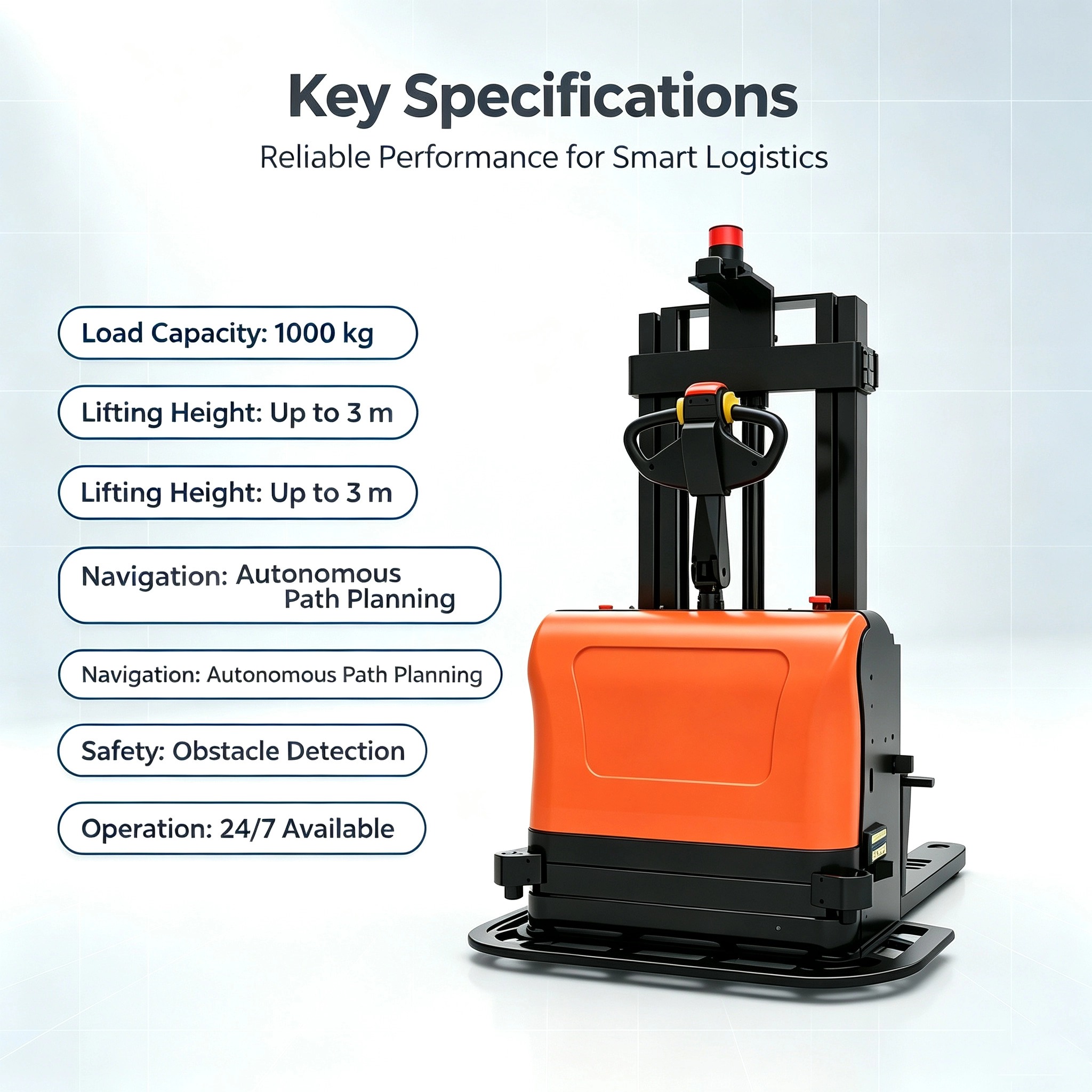

Load Capacity: 1000 kg Max Lifting Height: Up to 3 m Navigation: SLAM Autonomous Path Planning Safety: Full-range Obstacle Detection Operation: 24/7 Uninterrupted Automatic Operation
Wheel Parameters Tire Type: Polyurethane Wheel Front Tire: 210mm×70mm Rear Tire: 80mm×70mm Auxiliary Wheel: 100mm×50mm Wheel Quantity: Front 1 / Rear 2 / Auxiliary 4
Wheel Track Front Wheel Track: 866mm Rear Wheel Track: 525mm
Aisle Width Requirement
Speed Performance Travel Speed: 4km/h (Full Load), 5.6km/h (No Load) Lifting Speed: 140mm/s Lowering Speed: 101mm/s Gradeability: 8%(Full Load), 15%(No Load)
Motor & Brake Drive Motor Power: 0.8KW Lifting Motor Power: 2.2KW Travel Brake: Electronic Brake
Power System Battery Type: Lithium Iron Phosphate Battery 48V/30Ah Battery Weight: 26*4KG Charging Method: Automatic Charging Rated Working Time: 6 Hours (Full Load), 8 Hours (No Load)
Control & Display System Operating System: Android 11.0 RAM: LPDDR3 2GB Storage: NAND FLASH 16GB Screen: 10.1-inch
Hardware Buttons & Safety 1×Key Start Button 2×Emergency Stop Buttons (Cut off motor power for emergency machine stop)
Noise Standard Driver Ear Noise Level: <70DB(A), Compliant with DIN 12053
